Laboratory Freeze Dryer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI

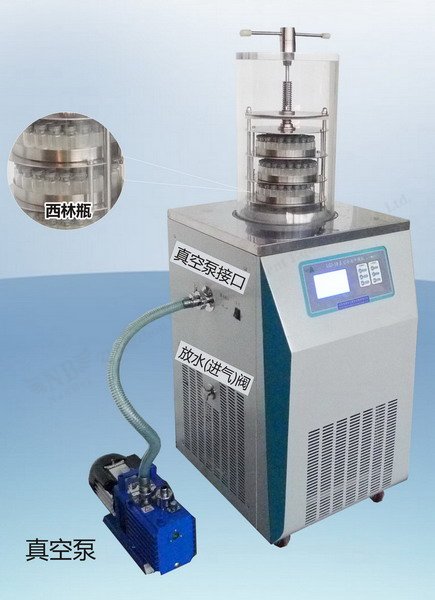

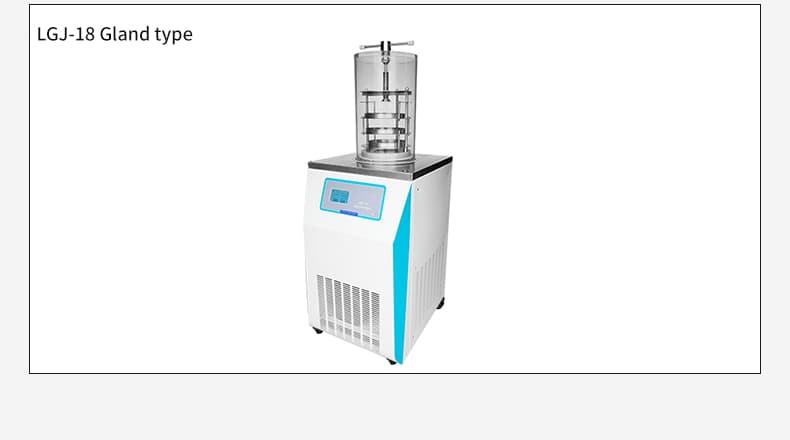

Model:LGJ-18 top press freeze dryer
Application:
LGJ-18 series of freeze-dryer:
Application:
LGJ-18 freezing dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.
Main Characteristics:
1. Match the green environmental protection of international standard
2. LCD display, Chinese interface, display drying curve
3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function
4. Imported compressor, high capability of water-capture, low noise
5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying
6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright
7. Transparent bell-cap drying room is safe and visual
8. Stainless steel sample shelf, the space of common sample tray can be adjusted
9. Small volume, convenient operation
Technical parameter:
Model | LGJ-18 |
Specification |
Top press type |
Freeze-drying area |
0.09㎡ |
Cold trap temperature |
＜-55℃ |
Vacuum degree |
＜10Pa |
Water-capture capacity |
6Kg/24h |
Material tray |
¢200mm*3pcs |
Power |
1400w |
Dimension |
635*540*(970+430)mm |
Material |
0.9L |
12mm exiling bottle |
900pcs |
16mm exiling bottle |
555pcs |
22mm exiling bottle |
270pcs |
Notice: The temperature of cold trap may reach -80℃ according to the user’s needs.
More options
Remark: This product is for civilian use only
