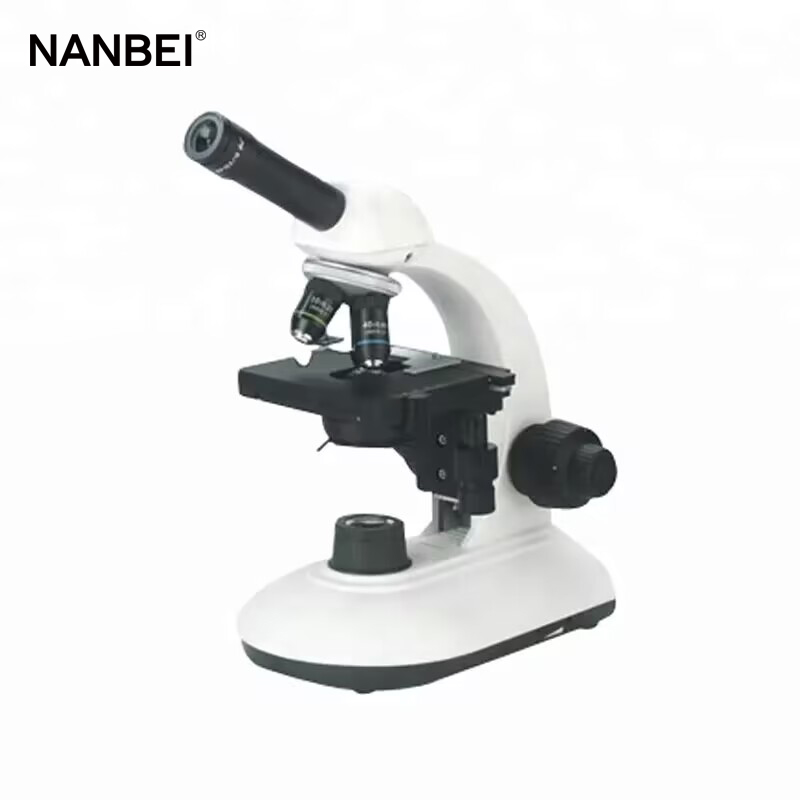

B Series Biological Microscope B104 LED

Brand:NANBEI

Model:B104 LED

Application:

CONTACT NOW Chat Now

product details

B Series Biological Microscope Outfit

Items	Specification	B104 LED	B203 LED	B204 LED	B203 TR	B204 TR
Eyepiece	WF 10X-18 mm(One With Pointer)	●	●●	●●	●●	●●
	WF 16X-13 mm	○	○○	○○	○○	○○
	WF 10X-18 mm(Reticule 0.1 mm)	○	○	○	○	○
Achromatic Objective	4X	●	●		●
	10X	●	●		●
	40X(S)	●	●		●
	100X/1.25 (Oil) (S)	●	●		●
	20X	○	○	○	○	○
	60X (S)	○	○	○	○	○
Plan Objective	4X	○		●		●
	10X	○		●		●
	40X/0.65 (S)	○		●		●
	100X/1.25 (Oil) (S)	○		●		●
	20X	○	○	○	○	○
Monocular Head	Inclined 30°, Rotatable 360°	●

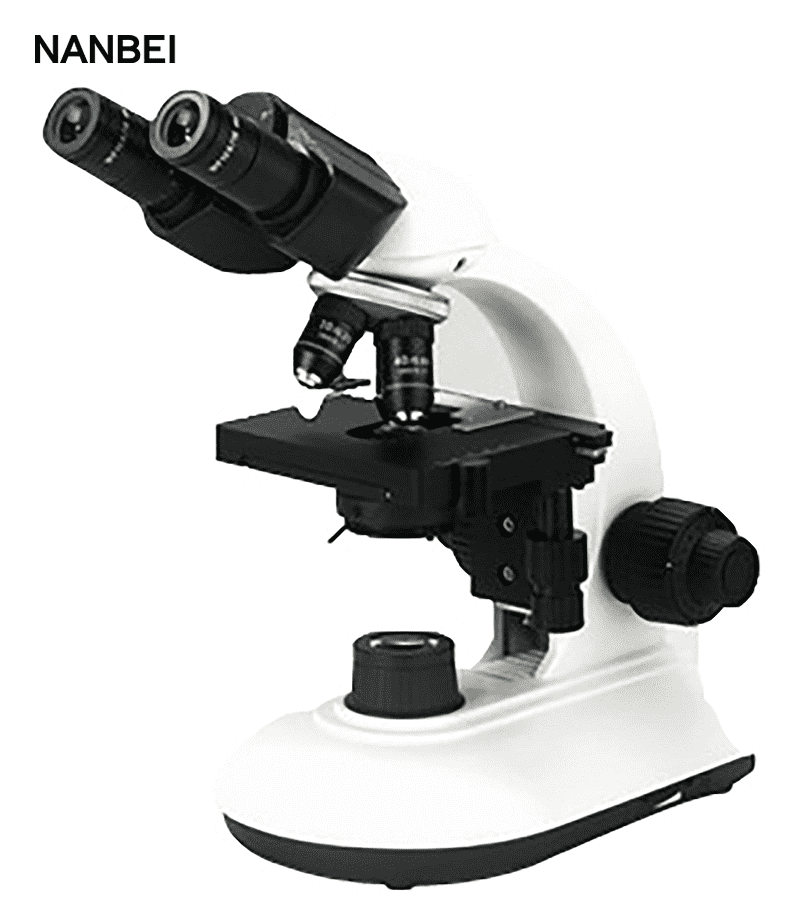

Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm		●	●
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80				●	●
Nosepiece	Quadplex	●	●	●	●	●
Focusing Knobs	Coaxial Coarse and Fine Focusing Knobs	●	●	●	●	●
Mechanical Stage	Stage Size:120mmX115mm, Travel:50mmX70mm	●	●	●	●	●
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	●	●	●	●	●
Dark Field Ring	Available For 4X-40X Objective	○	○	○	○	○
Polarizing Attachment	Analyzer /Polarizer	○	○	○	○	○
Mirror	Plano-concave mirror	○	○	○	○	○
C-mount	1X/0.5X （Focus Adjustable）				○	○
Base	6V 20W Halogen Lamp, Wide Voltage: 100V-240V	○	○	○	●	●
Base	LED Illumination Systems (Rechargeable is available)	●	●	●	○	○
