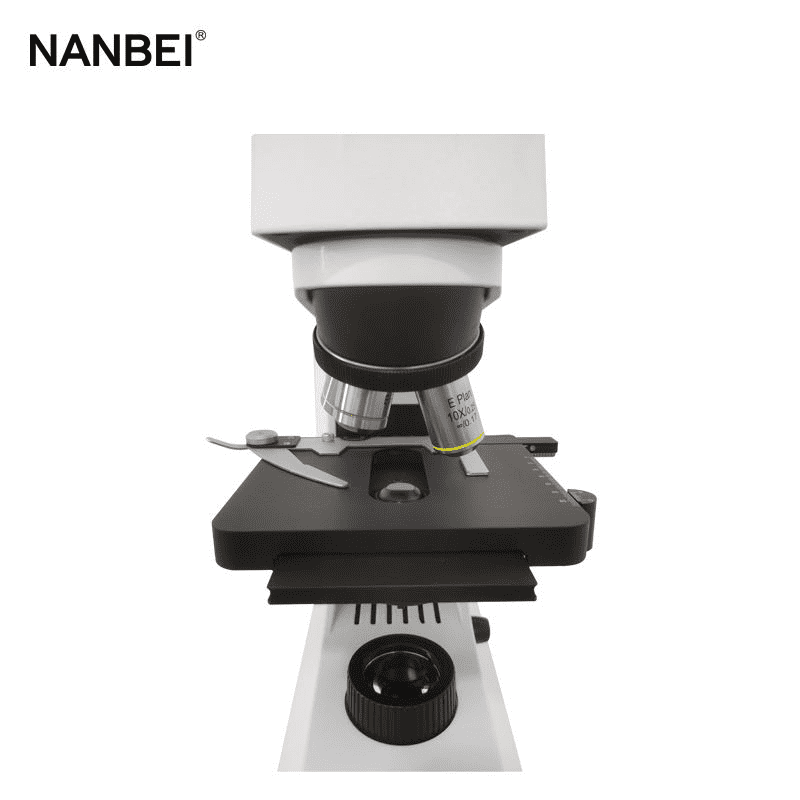

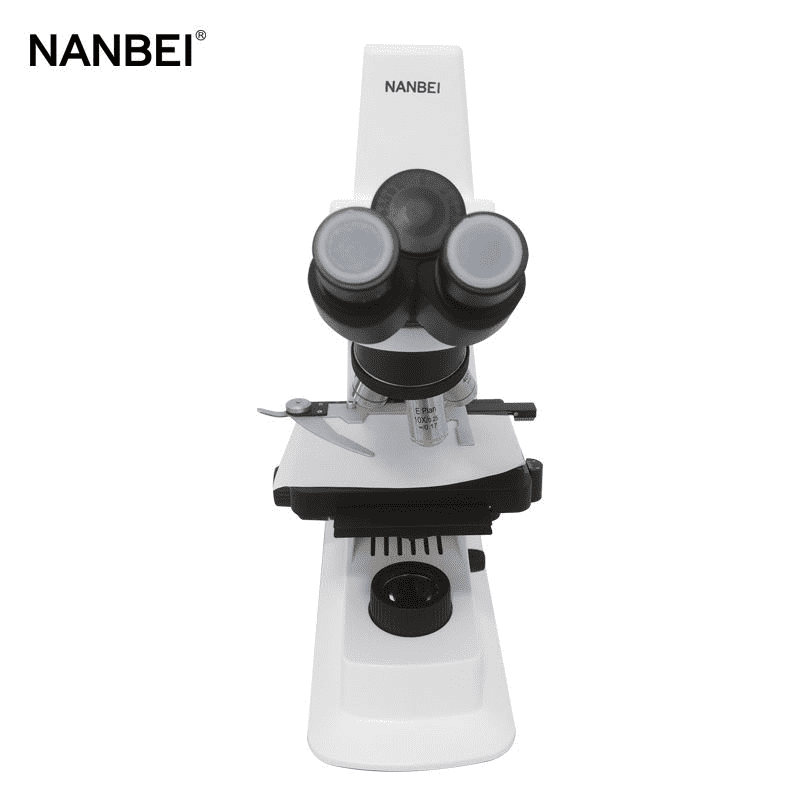

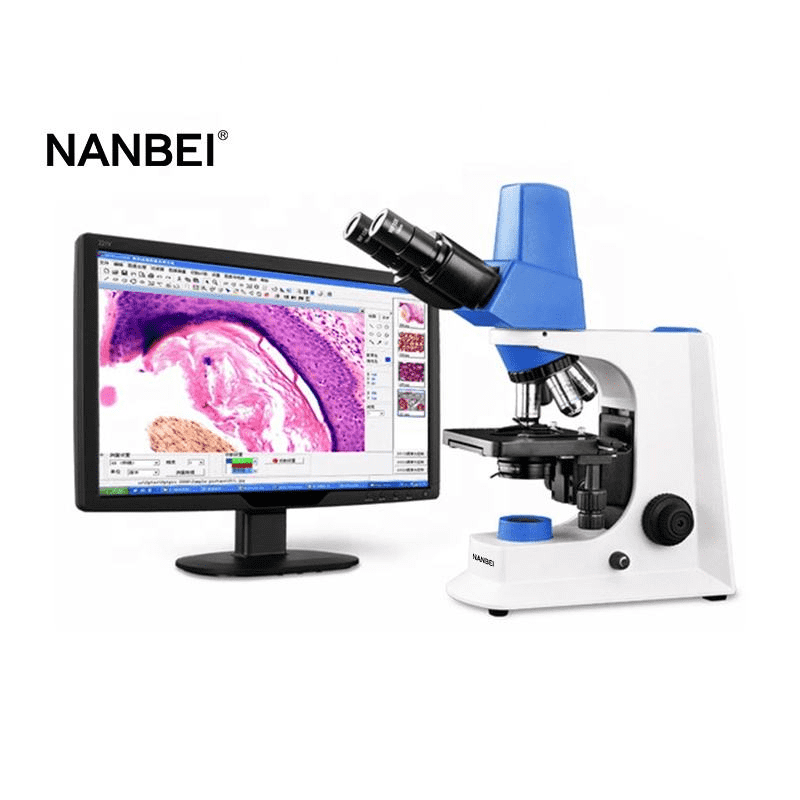

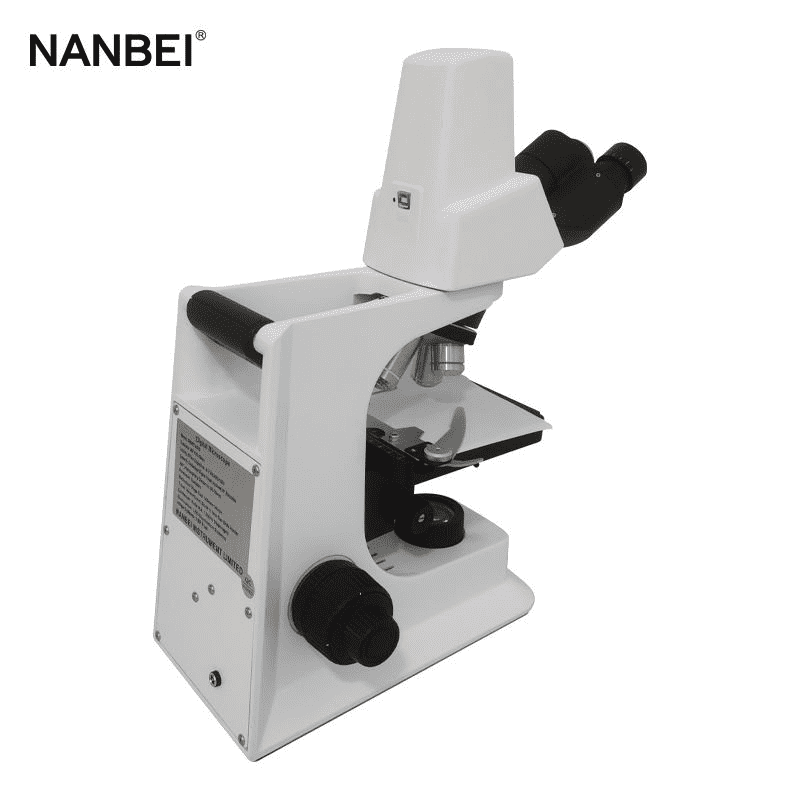

Smart-e Digital Microscope SMART-e500

Eyepiece

WF 10X-20mm

●●

●●

WF 10X-20 mm (Reticule 0.1mm)

○

○

WF16X-13mm

○○

○○

Infinity EPlan
Objective

4X

●

●

10X

●

●

40X/0.65 (S)

●

●

100X/1.25 (Oil) (S)

●

●

Seidentopf Binocular
Head

Inclined 30°,
Rotatable 360°,
Interpupilary Distance:  50-75mm

●

●

Nosepiece

Quadplex

●

●

Mechanical Stage

Stage Size: 145X140mm
Travel: 76mmX52mm, Scale: 0.1mm
Coaxial Coarse and Fine Focusing Knobs
Travel Range: 26mm, Scale: 2um
Two Slide Holder

●

●

Condenser

Abbe N.A. 1.25
(Iris Diaphragm)

●

●

Illumination

6V/20W Halogen Lamp

●

●

6V/30W Halogen Lamp

○

○

LED Illumination Systems（W/O Rechargeable）

○

○

Filter

Blue(Built In)

●

●

Green

○

○

Yellow

○

○

Image Systems

3.2MP Pixel

5 MP Pixel
