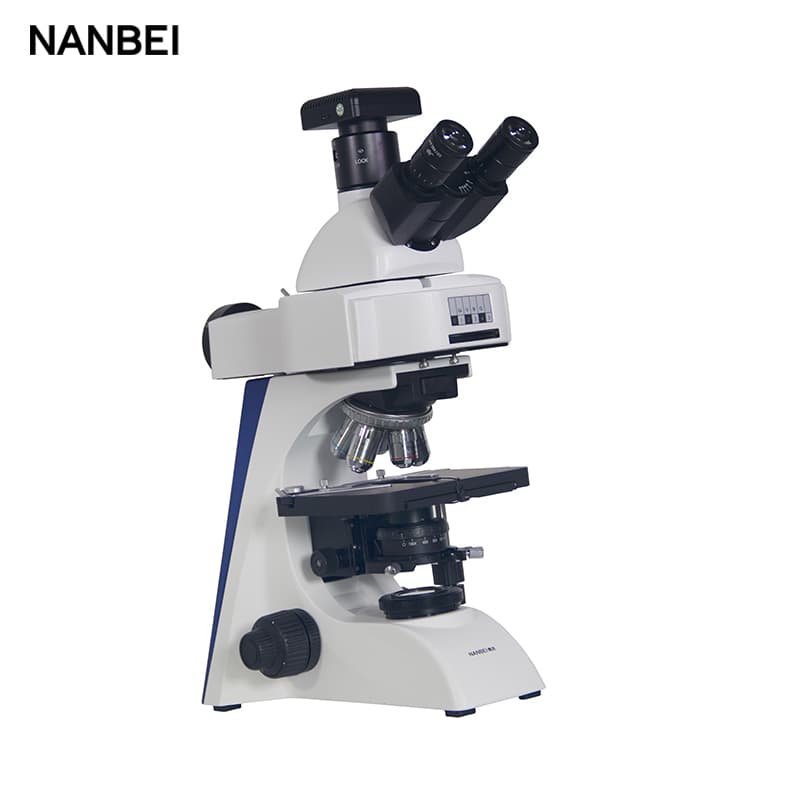

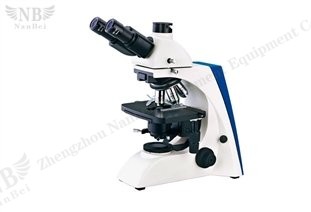

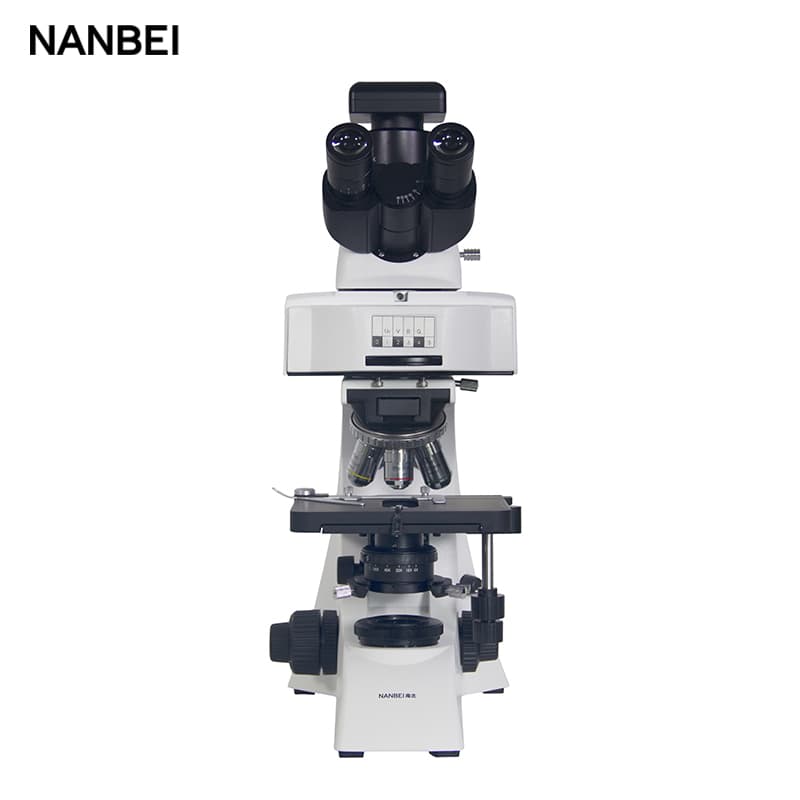

BK Series Biological Microscope

Brand:NANBEI

Model:BK300

Application:

CONTACT NOW Chat Now

product details

BK Series Biological Microscope Outfits

Items	Specification	BK300	BK5000
Eyepiece	WF 10X-18 mm	●●	○○
	WF 10X-20 mm	○○	●●
	WF 16X-13 mm	○○	○○
	WF 10X-18 mm ( 0.1mm)	○	○
	WF 10X-20 mm ( 0.1mm)	○	○

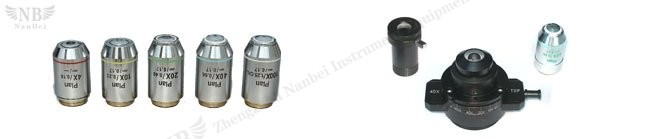

Plan Objective	4X /0.10	●
	10X /0.25	●
	40X /0.65 (S)	●
	100X /1.25 (Oil) (S)	●
	20X /0.40	○
	60X /0.80（S）	○
Infinity Plan Objectives	4X /0.10		●
	10X /0.25		●
	20X /0.40		●
	40X (S) /0.66(S)		●
	100X /1.25(Oil) (S)		●
	2.5X /0.07		○
	60X /0.80（S）		○
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50 -75mm	●	●
Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50 -75mm, Light Distribution: 100: 0 / 80:20	○	○
Nosepiece	Quadplex	●	○
Nosepiece	Quintuple	○	●
Mechanical Stage	Stage Size: 190X140mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder	●	●
Condenser	Abbe N.A. 1.25 (Iris Diaphragm)	●	●
Condenser	Swing out condenser N.A.0.9/0.13	○	○
Koehler Illumination	6V/20W Halogen Lamp	●	●
	6V/30W Halogen Lamp	○	○
	3W-LED Illumination	○	○
Polarizing Attachment	Analyzer / Polarizer	○	○

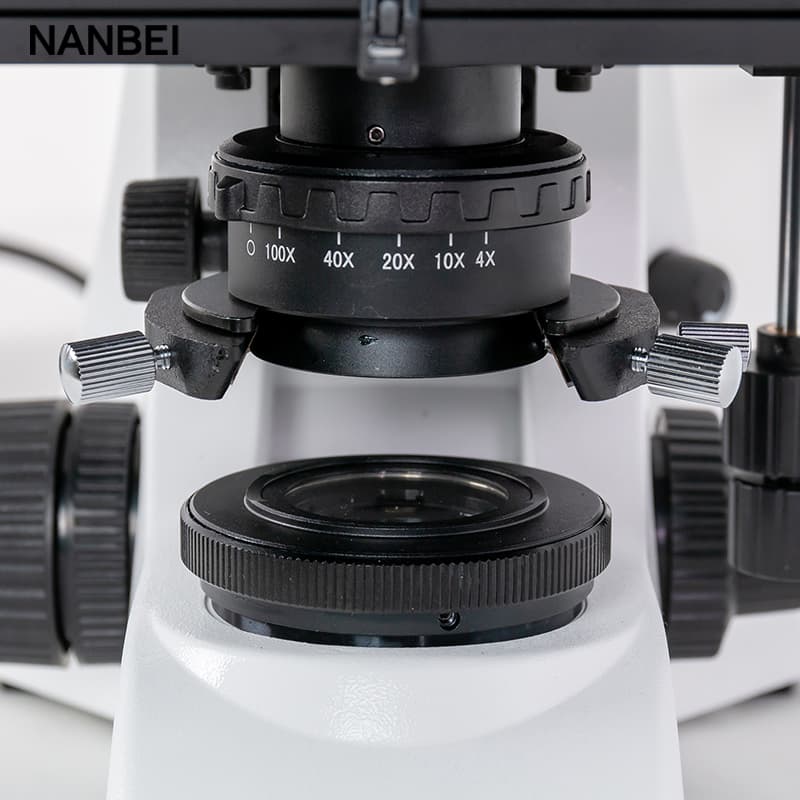

Phase Contrast Unit	Quintuple hole turret 10X /20X /40X /100X phase contrast objective		○
Phase Contrast Unit	Independent slot 10X /20X /40X /100X phase contrast objective		○
Dark Field Unit	N.A.0.9 (Dry)	○	○
C-mount	1X	○	○
C-mount	0.57X (Focus adjustable)	○	○

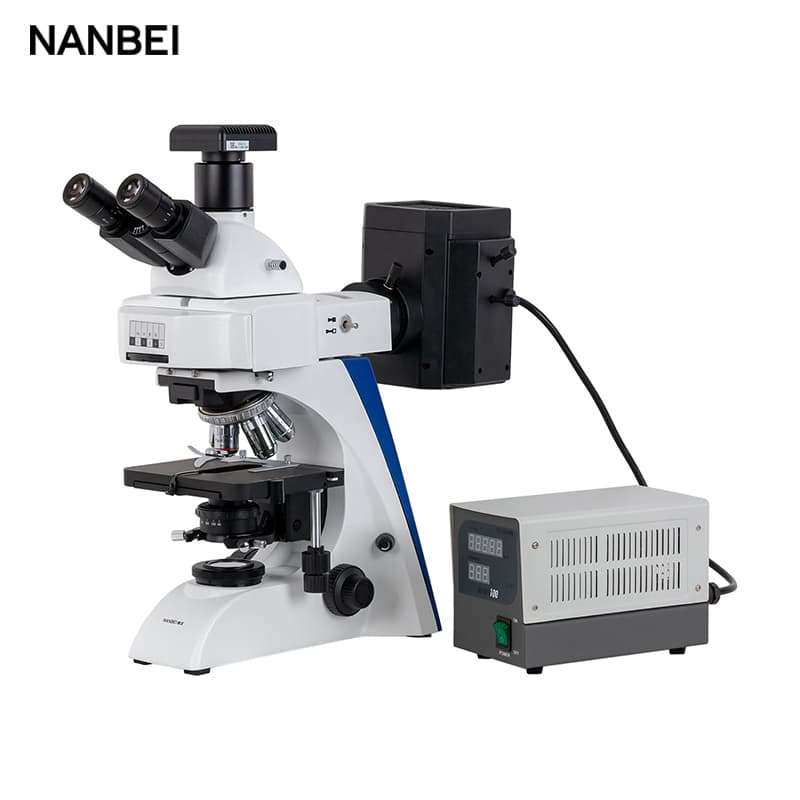

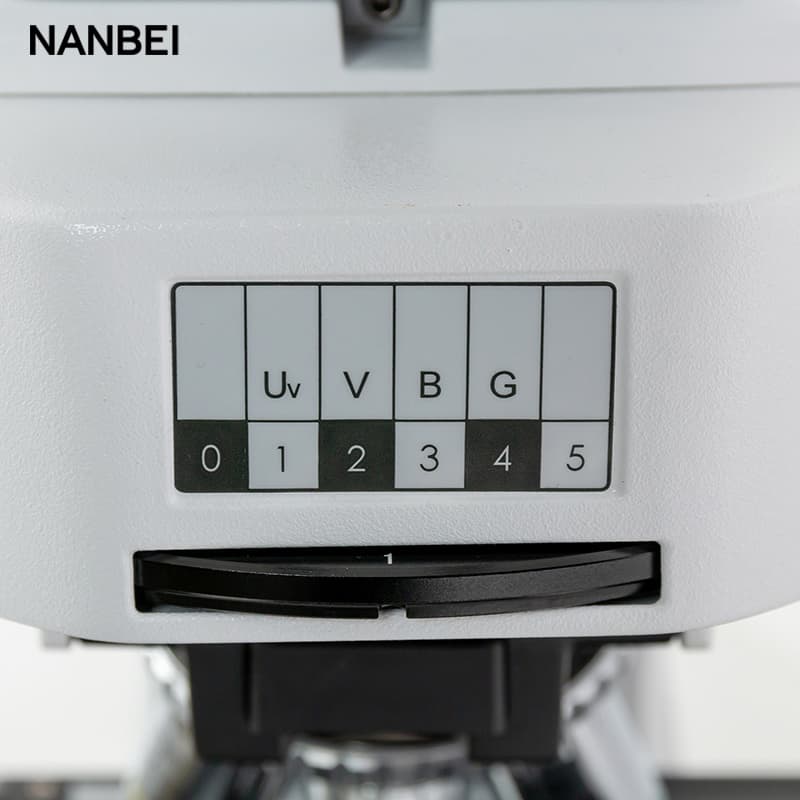

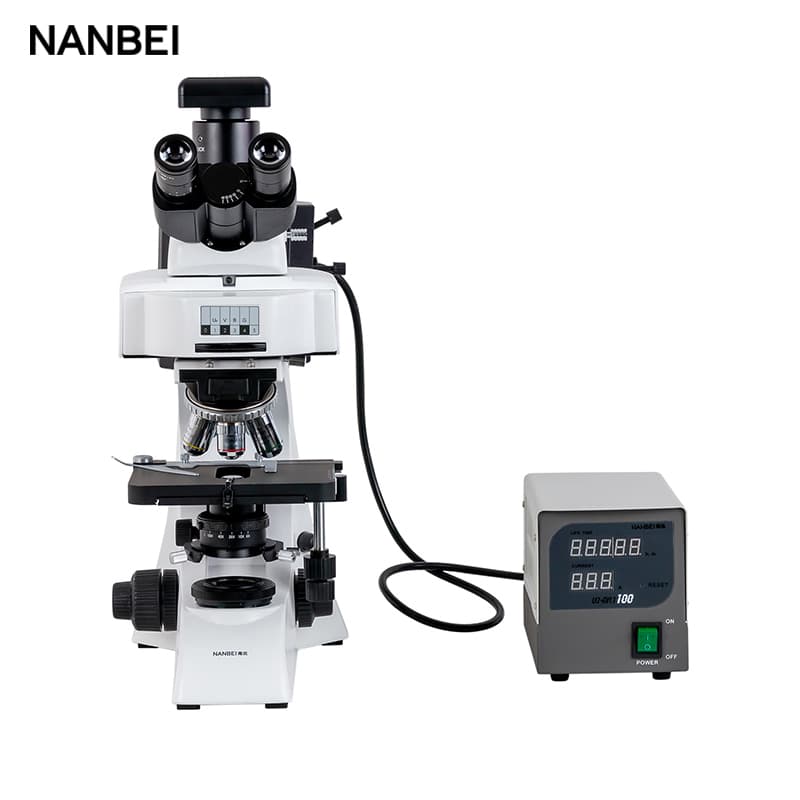

Fluorescence Attachment	Epi Fluorescence unit ( six-hole disc,U/V/B/G)	○	○
Fluorescence Attachment	Epi Fluorescence unit (three-hole slide,B/G)	○	○
Field Diaphragm		●	●
Filter	Blue	●	●
	Green	○	○
	Amber	○	○
