Force Gauge
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NK/NLB/ALB
Application:Widely applied in rubber plastic,light industry, textile,electric wire and cable,scientific research etc.

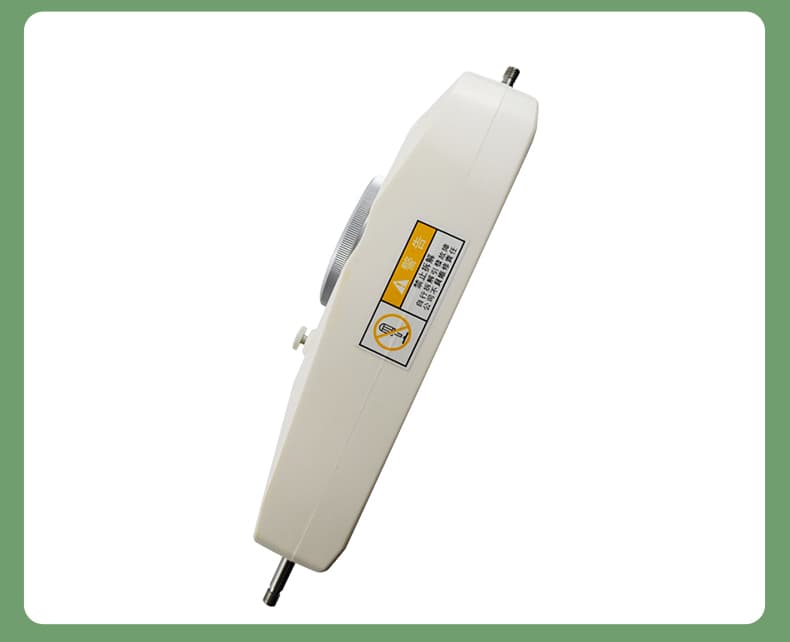

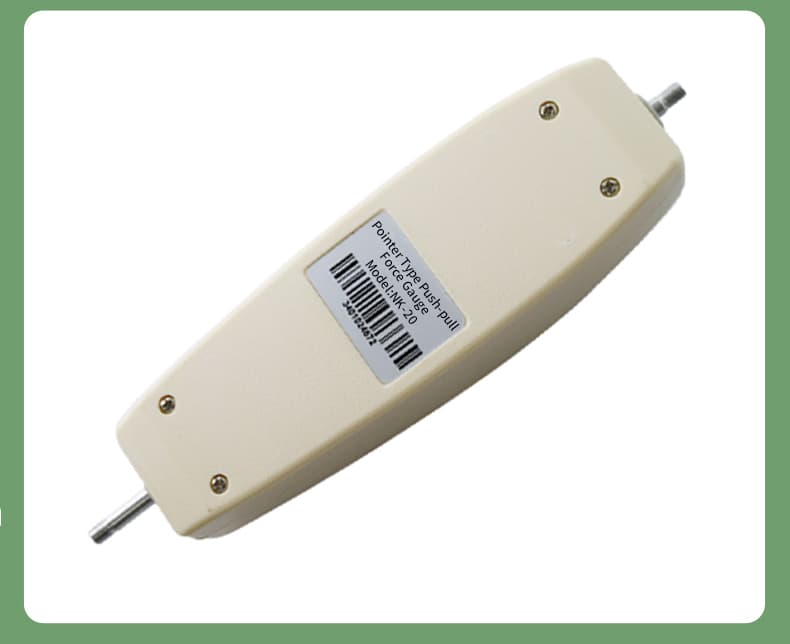

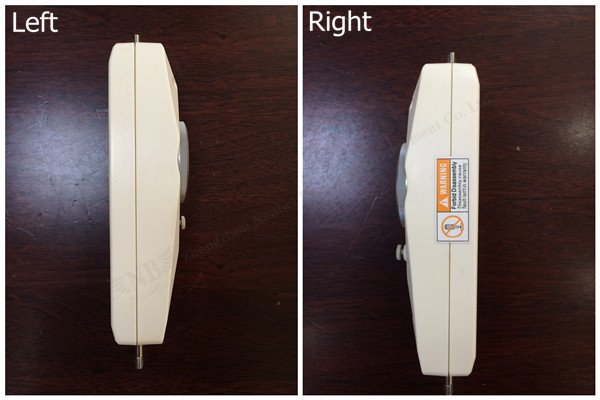

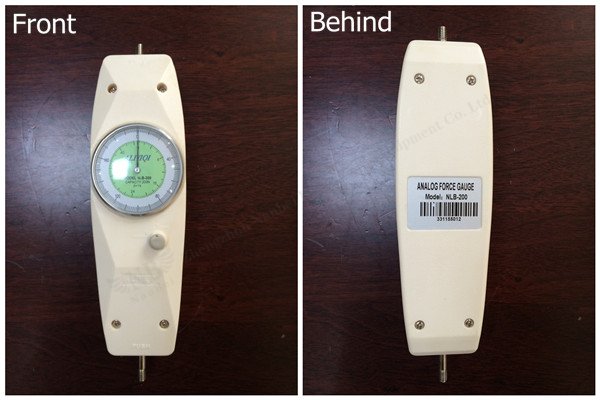

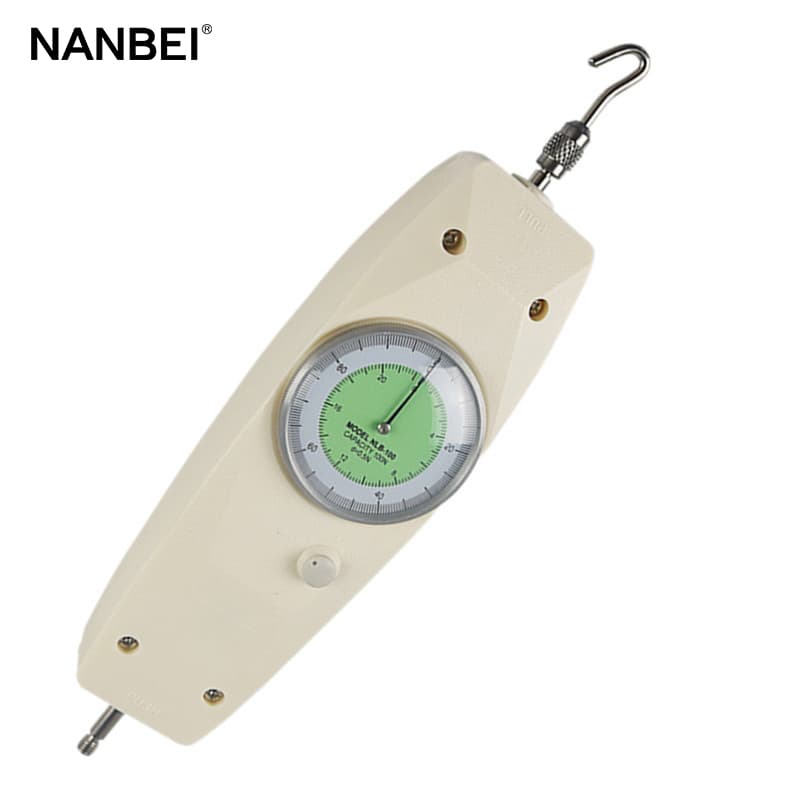

NK/NLB/ALB Analog Force Gauge
Product Description
The NK, NLB, ALB series are dial force gauge with compact size and high accuracy.
They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile,
building windows and doors, compound materials, electric wire and cable, auto part, power generator,
scientific research institute to do the push pull force insertion force and destructive experiment.
Character

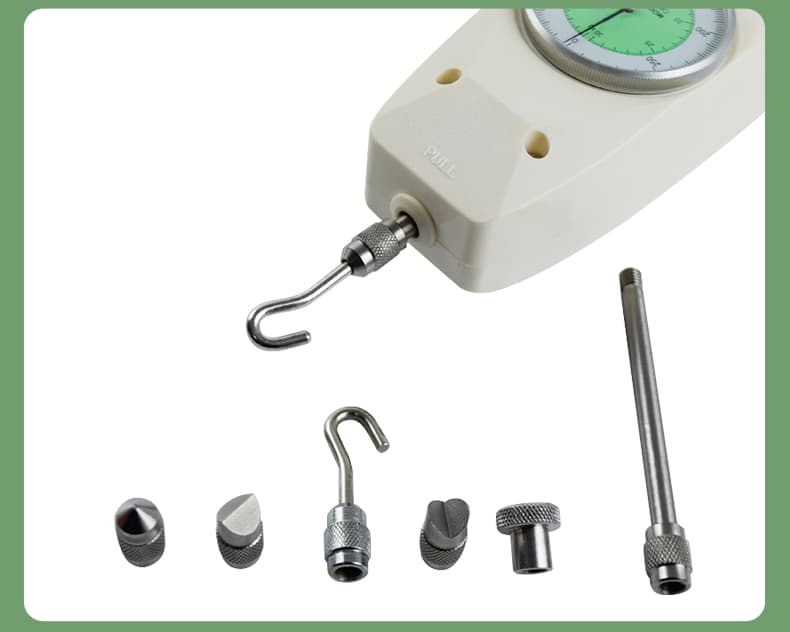

1.With easy operate and can be installed with all kinds of test stand and clamp.
2.Peak holding function and continuous.
3.One year free maintenance.

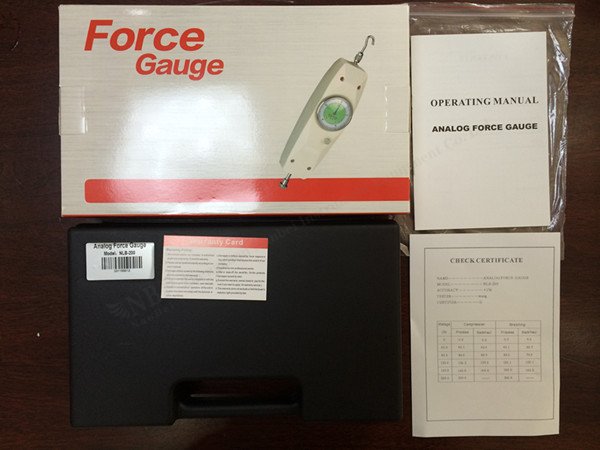

4.Compact and artistic packing, easy to transit andstock.
5.Two kind of unit dual show at the same time,don't need unit conversion.
6.NK Series: Newton and Kilogram dual unit;
NLB Series: Newton and Pound dual unit;
ALB: Pound and Kilogram dual unit.

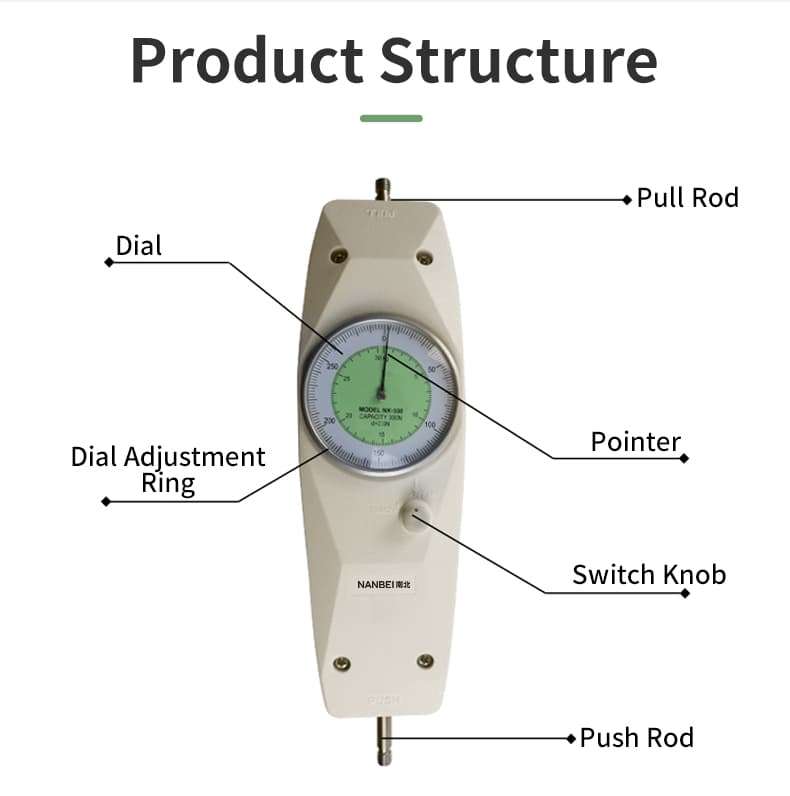

Needle indicates, easy to read, high accuracy
Technical Data
Model |
NK-20 |
NK-30 |
NK-50 |
NK-100 |
NK-200 |
NK-300 |
NK-500 |
Max load |
20N
2kg |
30N
3kg |
50N
5kg |
100N
10kg |
200N
20kg |
300N
30kg |
500N
50kg |
Min load |
2N
0.2kg |
3N
0.3kg |
5N
0.5kg |
10N
1kg |
20N
2kg |
30N
3kg |
50N
5kg |
Load graduation value |
0.1N
20g |
0.2N
20g |
0.25N
50g |
0.5N
100g |
1.0N
200g |
2.0N
200g |
2.5N
500g |
Rod journey |
10mm | ||||||
Work temperature |
20°土10℃ | ||||||
Carry temperature |
-27℃~+70℃ | ||||||
Relative humidity |
15%~80%RH | ||||||
Work environment |
No vibrancy and no cautery | ||||||
Model |
ALB-4 |
ALB-10 |
ALB-20 |
ALB-40 |
ALB-100 |
Max load |
4.5Ib
2kg |
11Ib
5kg |
22Ib
10kg |
45Ib
20kg |
110Ib
50kg |
Min load |
0.45Ib
0.2kg |
1Ib
0.5kg |
2.2Ib
1.1kg |
4.5Ib
2.2kg |
11Ib
5.5kg |
Load graduation value |
0.02Ib
0.02kg |
0.05Ib
0.05kg |
0.1Ib
0.1kg |
0.2Ib
0.2kg |
0.5Ib
0.5kg |
Rod journey |
10mm | ||||
Work temperature |
20°+-10℃ | ||||
Carry temperature |
-27℃~+70℃ | ||||
Relative humidity |
15%~80%RH | ||||
Work environment |
No vibrancy and no cautery | ||||
Model |
NLB-20 |
NLB-30 |
NLB-50 |
NLB-100 |
NLB-200 |
NLB-300 |
NLB-500 |
Max load |
20N
4.4Ib |
30N
6.6Ib |
50N
11Ib |
100N
22Ib |
200N
44Ib |
300N
66Ib |
500N
110Ib |
Min load |
2N
0.4Ib |
3N
0.6Ib |
5N
1Ib |
10N
2Ib |
20N
4Ib |
30N
6Ib |
50N
10Ib |
Load graduation value |
0.1N
0.04Ib |
0.2N
0.04Ib |
0.25N
0.1Ib |
0.5N
0.2Ib |
1.0N
0.4Ib |
2.0N
0.4Ib |
2.5N
1.0Ib |
Rod journey |
10mm | ||||||
Work temperature |
20°+-10℃ | ||||||
Carry temperature |
-27℃~+70℃ | ||||||
Relative humidity |
15%~80%RH | ||||||
Work environment |
No vibrancy and no cautery | ||||||
More pictures:

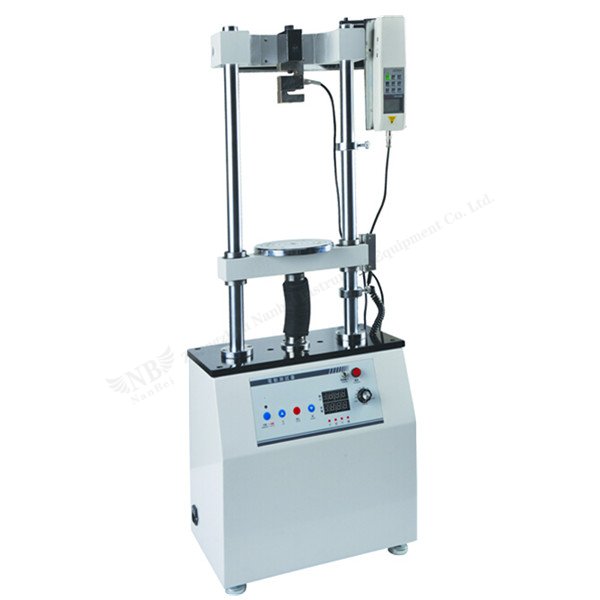

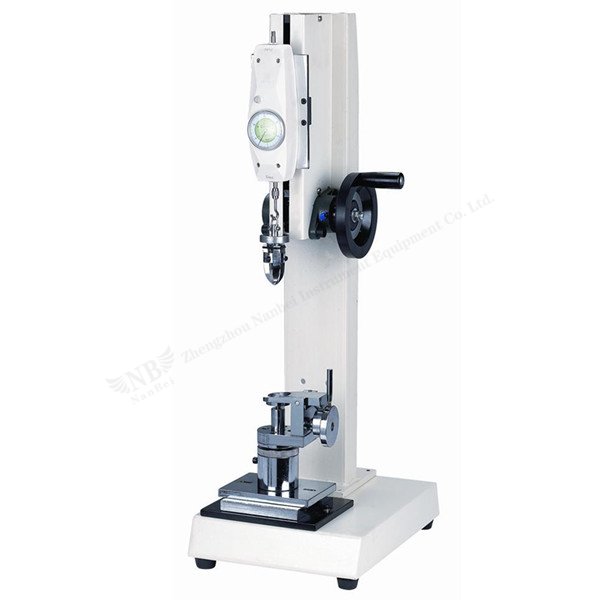

AEV Electric Double Column
Vertical Test Stand |
ASC Side Shake Screw
Testtand |

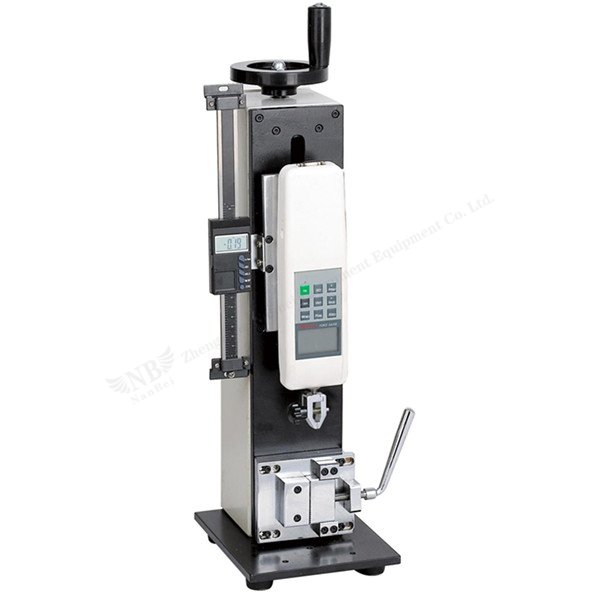

ASL Manual Vertical
(Horizontal) Dual Test Stand |
 |  |  |

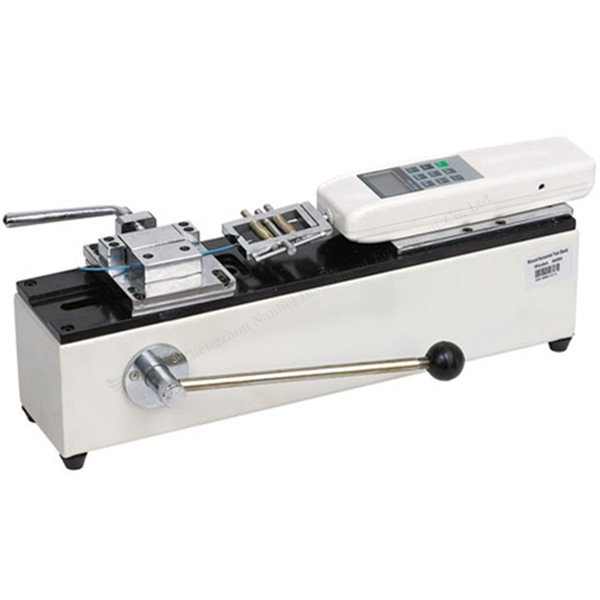

ADL Terminal Pulling Force
Tester |
ABQ Button Tester |

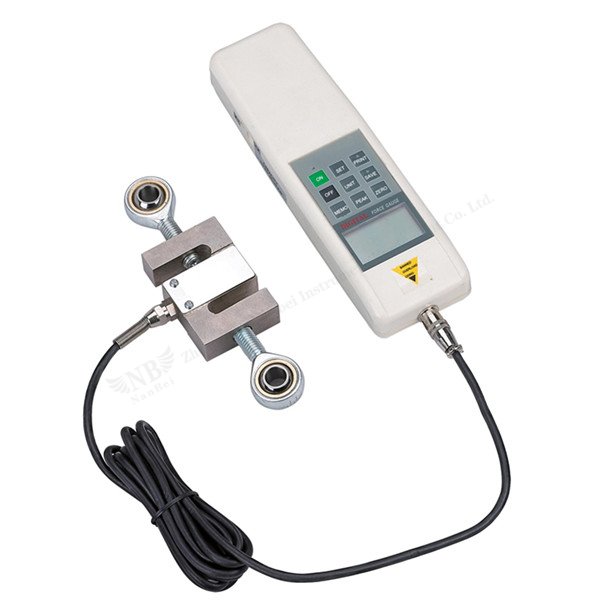

HF Digital force gaguge |
 |  |  |
