GL99 Series Stereo Microscopes
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

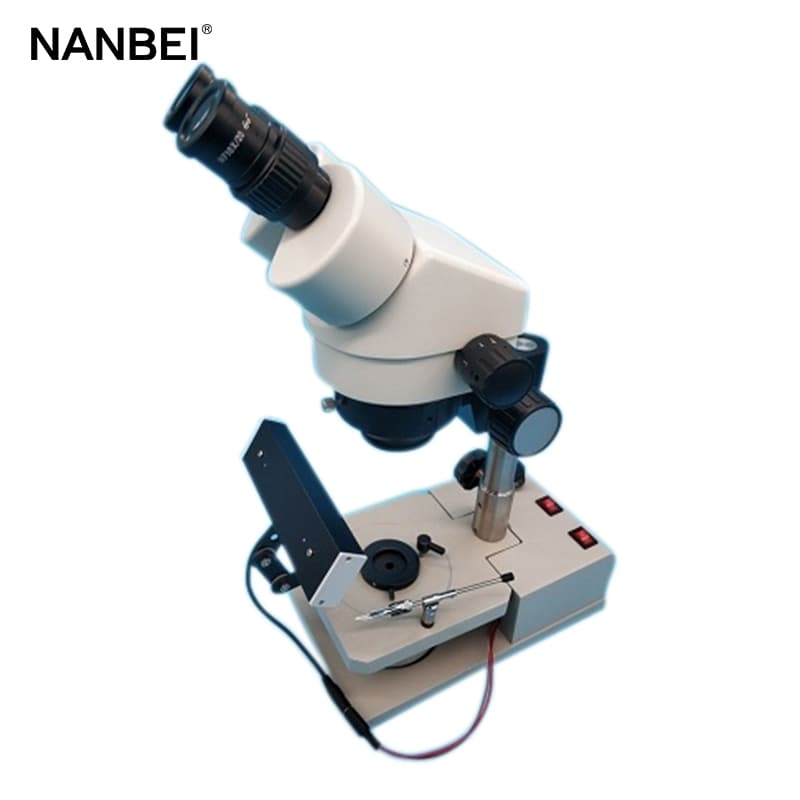

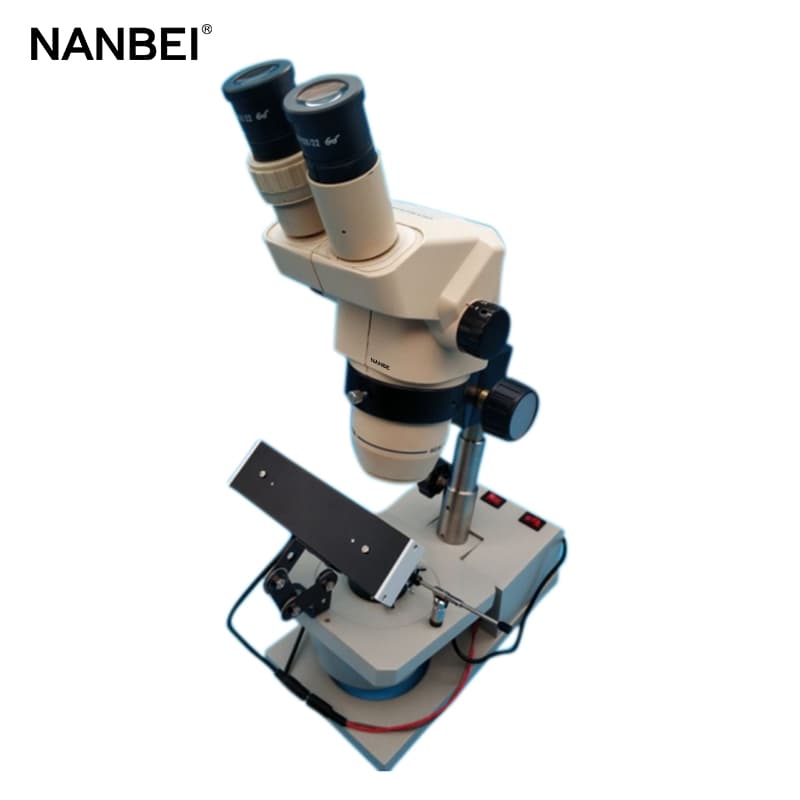

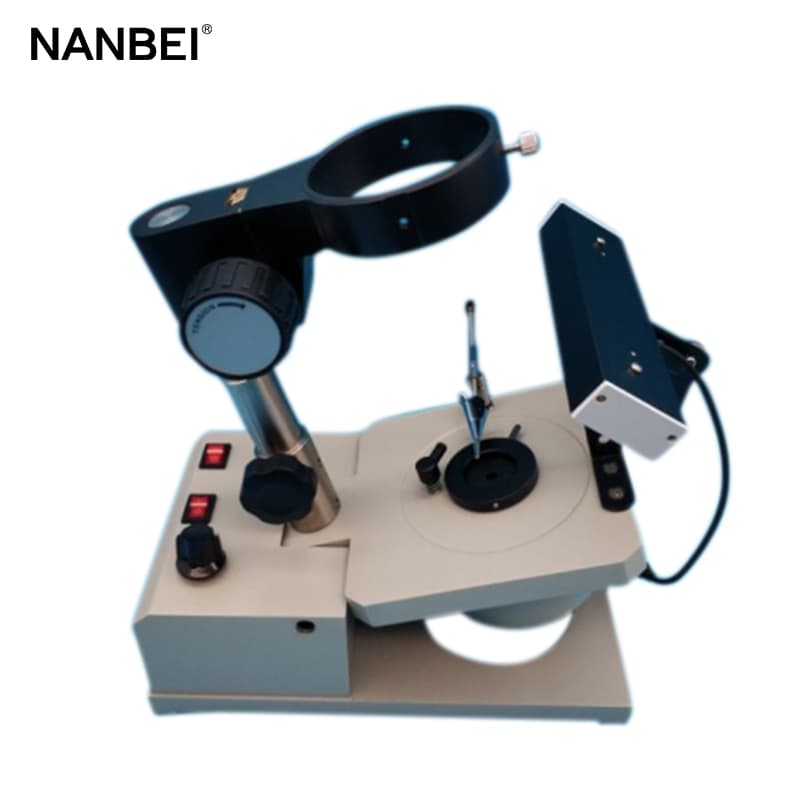

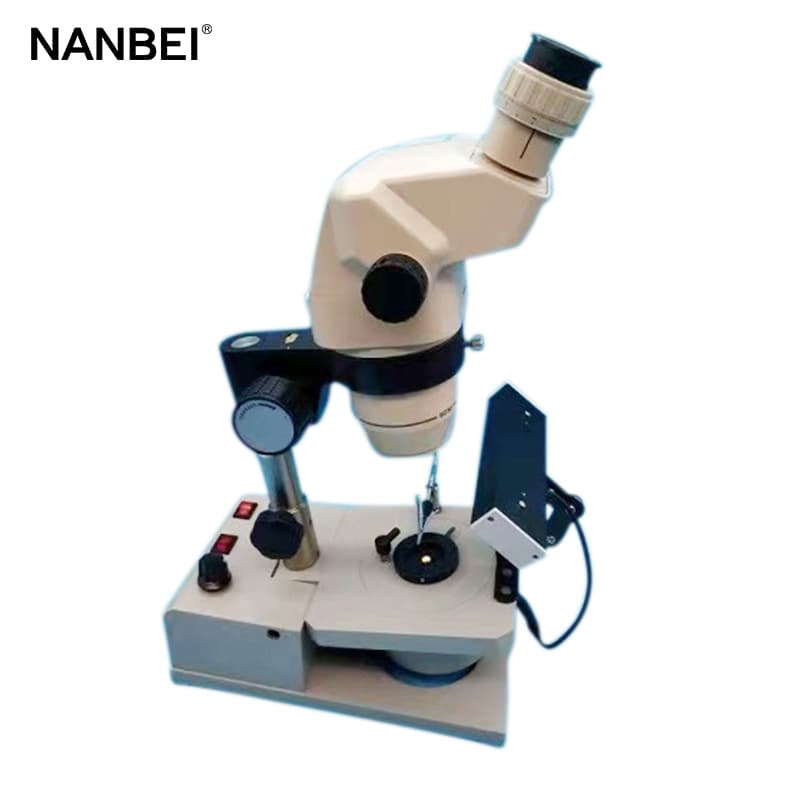

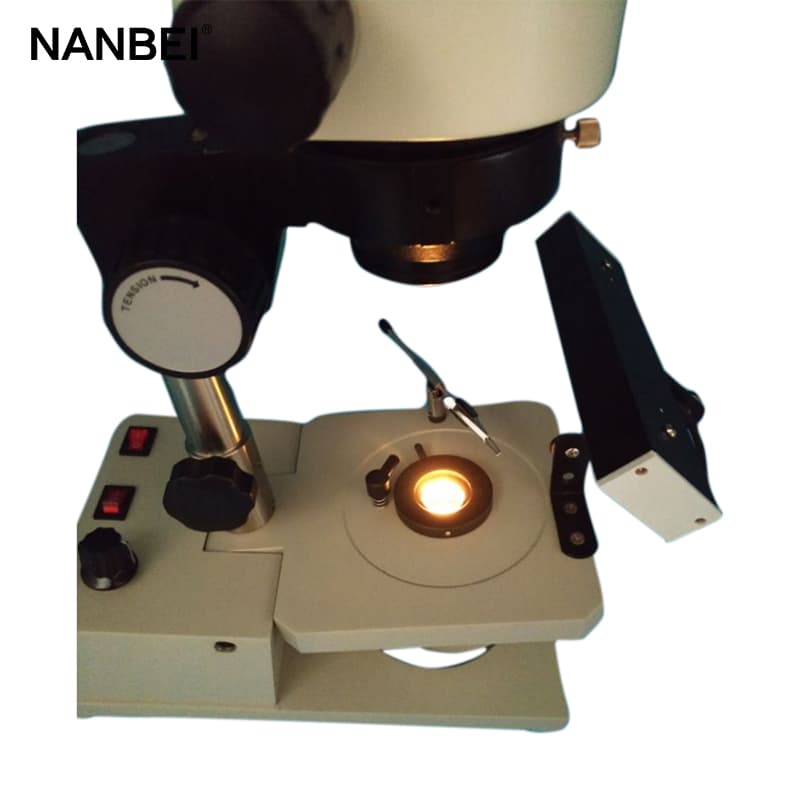

GL-99T Stereo Microscopes
The high performance GL Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a 103mm working distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in focus through repeated changes in the magnification. They feature a guidepost structure, making them lightweight, and a pair of horizontal magnification changing knobs to maximize comfort. Adding to the ergonomics is a choice of observation angle, either 45 or 60 degrees. In addition to performance and comfort, a highlight of the GL is their durability. Promoting one of the finest ball bearing guideways in the world, the focusing mechanism is extremely robust.
Standard configurations
| Zoom ratio | 1:7 |
| Objective zoom range | 0.65X-4.5X |
| Eyepice | SWF10X/22mm |
| Working distance | 103mm |
| Interpupillary distance adjustment | 55mm-75mm |
| Binocular head | inclination of 45。or 60。 |
| Diopter adjustment | ±5 diopter |
| Optical Body Rotation | 360。 |
 |  |  |
Technical data
Project |
Auxiliary Objective |
Eyepiece |
Working distance(mm) | |||||||
SWF10X |
WFl5X |
WF20X |
WF25X | |||||||
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cationn |
Visual field | |||
Data |
0.5X |
3.3X-22.5X |
67.7-9.8 |
4.9X-33.8X |
49.2-7 |
6.5X-45X |
40-5.8 |
8.1X-56.3X |
37-5.2 |
163 |
0.75X |
4.9X-33.8X |
45.1-6.5 |
7.3X-50.6X |
32.8-4.7 |
9.75X-67.5 |
26.6-3.8 |
12.2X-84.4X |
24.6-3.5 |
117 | |
1X |
6.5X-4.5X |
33.8-4.9 |
9.8X-67.5X |
24.6-3.5 |
13X-90X |
20-2.9 |
16.3X-112.5X |
18.5-2.6 |
103 | |
1.5X |
9.8X-67.5X |
22.5-3.3 |
14.6X-101.3 |
16.4-2.3 |
19.5X-135X |
13.3-1.9 |
24.4X-168.8X |
12.3-1.7 |
45 | |
2X |
13X-99X |
16.9-2.5 |
19.5X-135X |
12.3-1.8 |
266X-180X |
10-1.4 |
32.5X-225X |
9.2-1.3 |
40 | |
