GL-99BI Stereo Microscopes

Brand:NANBEI

Model:GL-99BI

Application:

CONTACT NOW Chat Now

product details

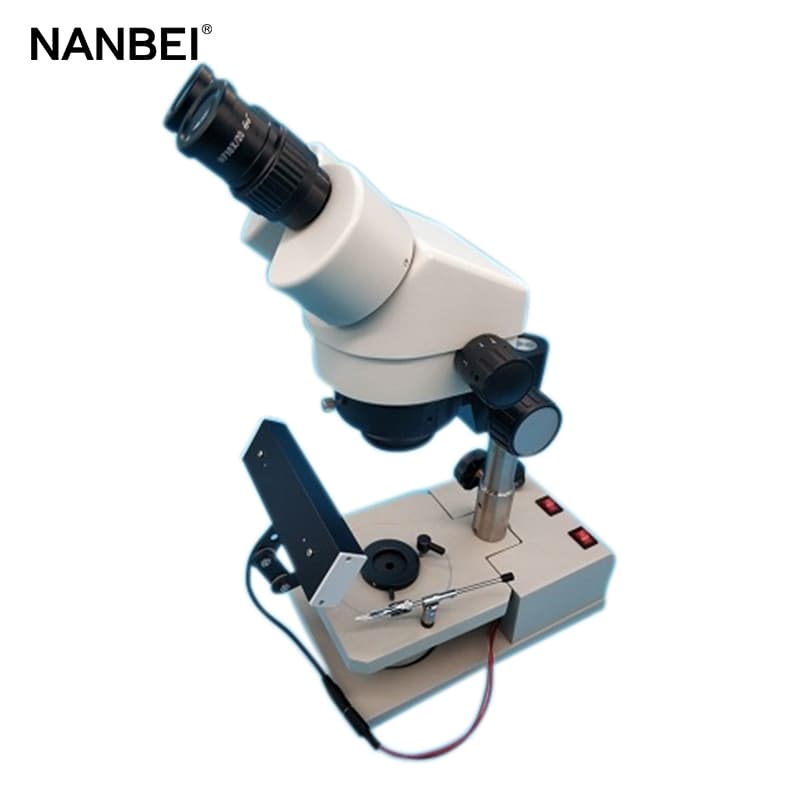

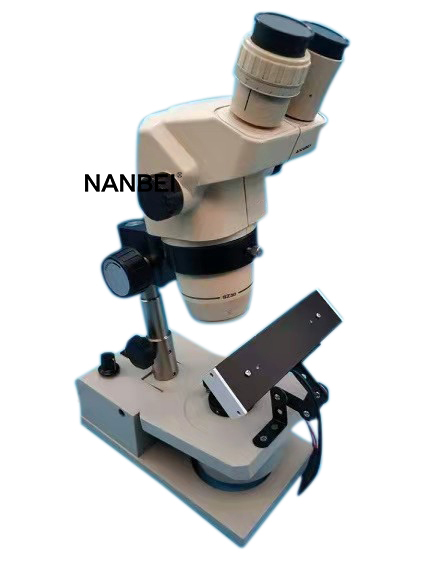

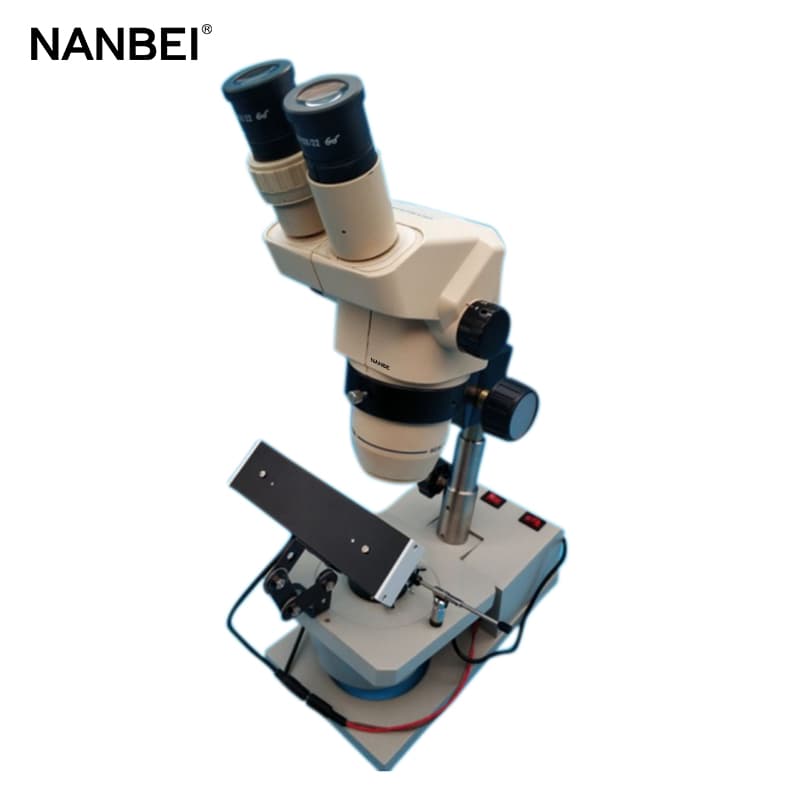

GL-99BI Stereo Microscopes

The high performance GL Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a 103mm working distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in focus through repeated changes in the magnification. They feature a guidepost structure, making them lightweight, and a pair of horizontal magnification changing knobs to maximize comfort. Adding to the ergonomics is a choice of observation angle, either 45 or 60 degrees. In addition to performance and comfort, a highlight of the GL is their durability. Promoting one of the finest ball bearing guideways in the world, the focusing mechanism is extremely robust.

Standard configurations

Zoom ratio	1:7
Objective zoom range	0.65X-4.5X
Eyepice	SWF10X/22mm
Working distance	103mm
Interpupillary distance adjustment	55mm-75mm
Binocular head	inclination of 45。or 60。
Diopter adjustment	±5 diopter
Optical Body Rotation	360。
Voltage input	110V/60HZ or 220V/50HZ
Top halogen lamp	6V15W adjustable brightness
Bottom fluorescent lamp	5W

Technical data

Project	Auxiliary Objective	Eyepiece								Working distance(mm)
		SWF10X		WFl5X		WF20X		WF25X
		Magnifi-cation	Visual field	Magnifi-cation	Visual field	Magnifi-cation	Visual field	Magnifi-cationn	Visual field
Data	0.5X	3.3X-22.5X	67.7-9.8	4.9X-33.8X	49.2-7	6.5X-45X	40-5.8	8.1X-56.3X	37-5.2	163
	0.75X	4.9X-33.8X	45.1-6.5	7.3X-50.6X	32.8-4.7	9.75X-67.5	26.6-3.8	12.2X-84.4X	24.6-3.5	117
	1X	6.5X-45X	33.8-4.9	9.8X-67.5X	24.6-3.5	13X-90X	20-2.9	16.3X-112.5X	18.5-2.6	103
	1.5X	9.8X-67.5X	22.5-3.3	14.6X-101.3	16.4-2.3	19.5X-135X	13.3-1.9	24.4X-168.8X	12.3-1.7	45
	2X	13X-99X	16.9-2.5	19.5X-135X	12.3-1.8	266X-180X	10-1.4	32.5X-225X	9.2-1.3	40
