XPZ-830T Stereo Zoom Microscope

XPZ830 is a big zoom stereomicroscope with high performance, the zoom ratio is 1:8:3. The series adopt building block structure and can easily and quickly mount the functional components, such as photographic system, CCD, Digital camera for the convenience of taking pictures and coaxial illuminating. It adopts the parallel optical paths. And the common bojective with non-coaxial imaging techniques, whick improve definition of the visual field edge, strengthen three-dimension effect and offer a clear effect on obdervation object with bright background. The series microscopes have a character of big working table , comfortable usage. easy operationg and reliable performance.. It can be used extensively for mediacal and hygienic work, agriculture and electron and precision machinery.

It is particularly suitable for the test of LC maked film, LCD printing paste, LED production, PCB board, pressing and plating and electron compeonents.

Standard configurations

zoom ratio 1:8.3
Objective zoom range 0.6X-5X
Eyepice SWF10X/22mm
Working distance 95mm
Interpupillary distance adjustment range 48mm-75mm
Binocular head inclination of 45。
Diopter adjustment ±5 diopter
Optical Body Rotation。 360
Technical data
Project
Auxiliary Objective
Eyepiece
Working distance(mm)
SXF10X
WFl5X
WF20X
WF25X
Magnifi-cation
Visual field
Magnifi-cation
Visual field
Magnifi-cation
Visual field
Magnifi-cation n
Visual field
Data
0.3X









0.5X
3X-25X
73-8.8
4.5X-37.5X
53.3-6.4
6X-50X
43.3-5.2
7.5X-62.5X
40-4.8
200
1X
6X-50X
36.7-4.4
9X-75X
26.7-3.2
12X-100X
21.6-2.6
15X-125X
20-2.4
95
1.5X
9X-75X
24.4-2.9
13.5X-112.5X
17.7-2.1
18X-150X
14.4-1.7
22.5X-187.5X
13.3-1.6
55
2X
12X-100X
18.4-2.2
18X-150X
13.3-1.6
24X-200X
10.8-1.3
30X-250X
10-1.2
35

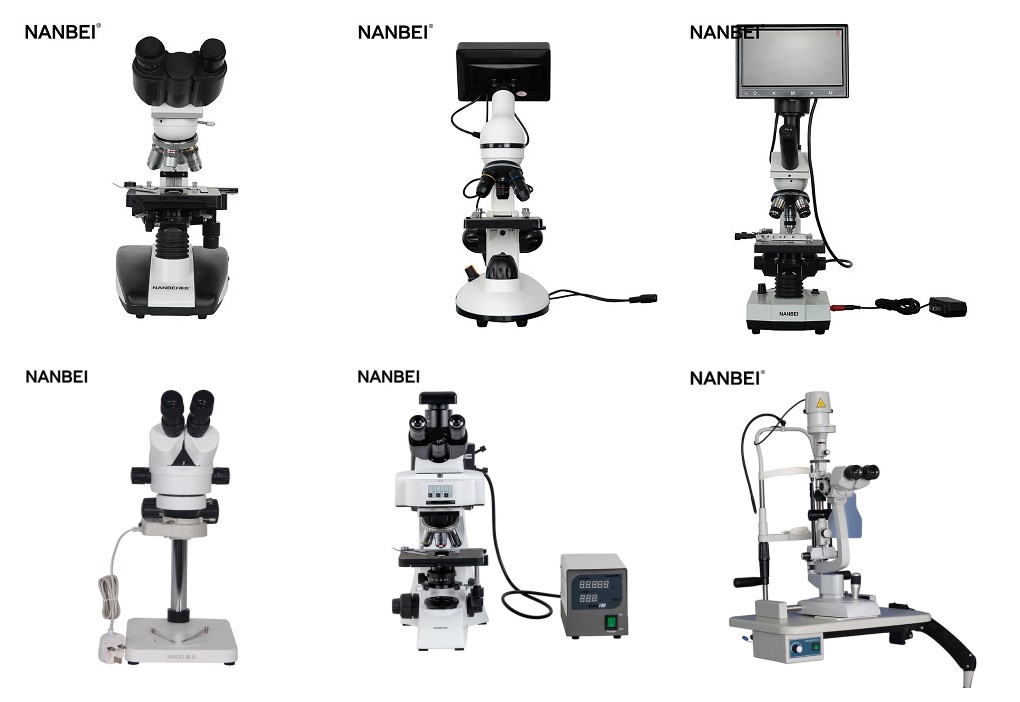

Other types
