Stereo Microscopes XTB-A1
The XTB Series stereo microscope line is a resilient, robust, high performance optical system for the most demanding environment. With a zoom ration of 1:4 and 97MM working distance, it is ideally suited for quality control, “back end manufacturing”, medical device inspection, and many other medical and electronic manufacturing applications. These models are supplied with 10X super wide-field high point eyepieces as standard. The mechanical focusing and zoom systems are simple to use, and designed to perform flawlessly for many years. GLO offers an extensive variety of stand types, eyepieces, auxiliary objectives, imaging adapters, light sources and dissection kits to complement the basic microscope system. This model line is well suited for both professional manufacturing and educational locales.
Standard configurations
Zoom ratio | 1:4 |
Objective zoom range | 1X-4X |
Eyepice,Big Eyepiece | 10X eyepiece, 20Xeyepiece, 2X big eyepiece |
Working distance | 95mm |
Interpupillary distance adjustment range | 55mm-75mm |
Binocular head | inclination of 45。 |
Diopter adjustment | ±5 diopter |
Optical body rotation | 360。 |
Voltage input | 110V/60HZ or 220V/50HZ |
Project |
Auxiliary Objective |
Eyepiece |
Working distance(mm) | |||||||
WF10X |
WFl5X |
WF20X |
WF25X | |||||||
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field |
Magnifi-cation |
Visual field | |||
Data |
0.5X |
5X-20X |
40-10 |
7.5X-30X |
32-8 |
10X-40X |
26-6.6 |
12.5X-50X |
24-6 |
160 |
0.75X |
7.5X-30X |
26.7-6.7 |
11.3X-45X |
21.3-5.3 |
15X-60X |
17.3-4.4 |
18.8X-75X |
16-4 |
120 | |
1X |
10X-40X |
20-5 |
15X-60X |
16-4 |
20X-80X |
13-3.3 |
25X-100X |
12-3 |
97 | |
1.5X |
15X-60X |
13.3-3.3 |
22.5X-90X |
10.7-2.7 |
30X-120X |
8.7-2.2 |
37.5X-150X |
8-2 |
45 | |
2X |
20X-80X |
10-2.5 |
30X-120X |
8-2 |
40X-160X |
6.5-1.6 |
50X-200X |
6-1.5 |
30 |

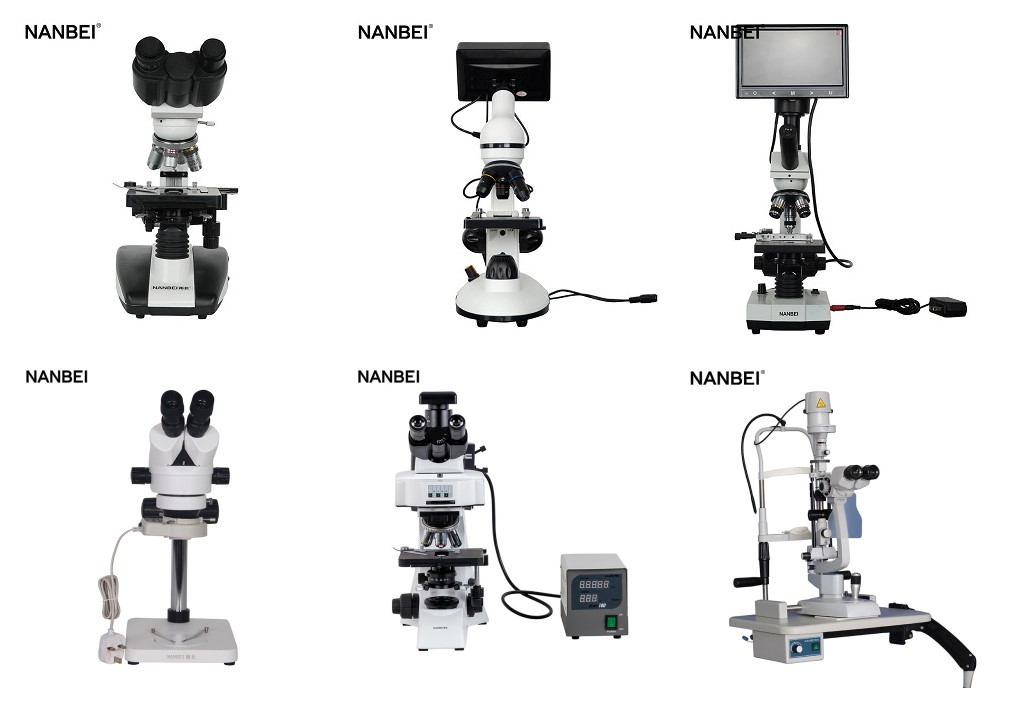

Other types
