CM10 Coating Thickness Gauge

Brand:NANBEI

Model: CM10

Application:

CONTACT NOW Chat Now

product details

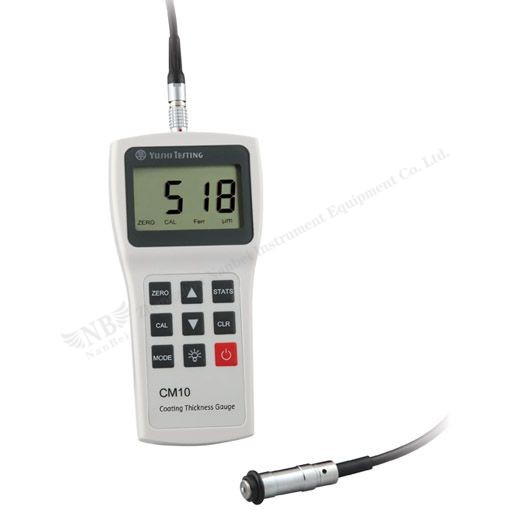

CM10

This compact and handy pocket gauge has been designed for non-destructive, fast and precise coating thickness measurement. Fit for both experiment and project site. According to the probe type, the gauge work either on the magnetic induction principle or on the eddy currents principle.

Measuring Principle:

Magnetic Method (Fe): Measuring the thickness of non- magnetic coatings on steel, iron and other
ferromagnetic metal substrates, e.g. painting, varieties of anti-corrosion coating, powder spraying,
plastic, rubber, synthetic material, phosphate coating, chromium, zinc, Aluminum, tin and cadmium, etc.
Eddy Current Method (NFe): measuring the thickness of non-conductive coatings on copper, aluminum,
stainless steel and other non-ferromagnetic substrates, e.g. painting, varieties of anti-corrosion coating,
powder spraying, plastic, rubber, synthetic material, oxide film and phosphate film, etc.

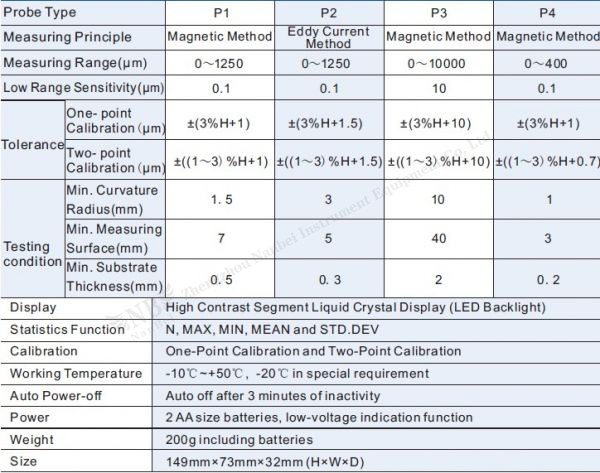

Specifications:
