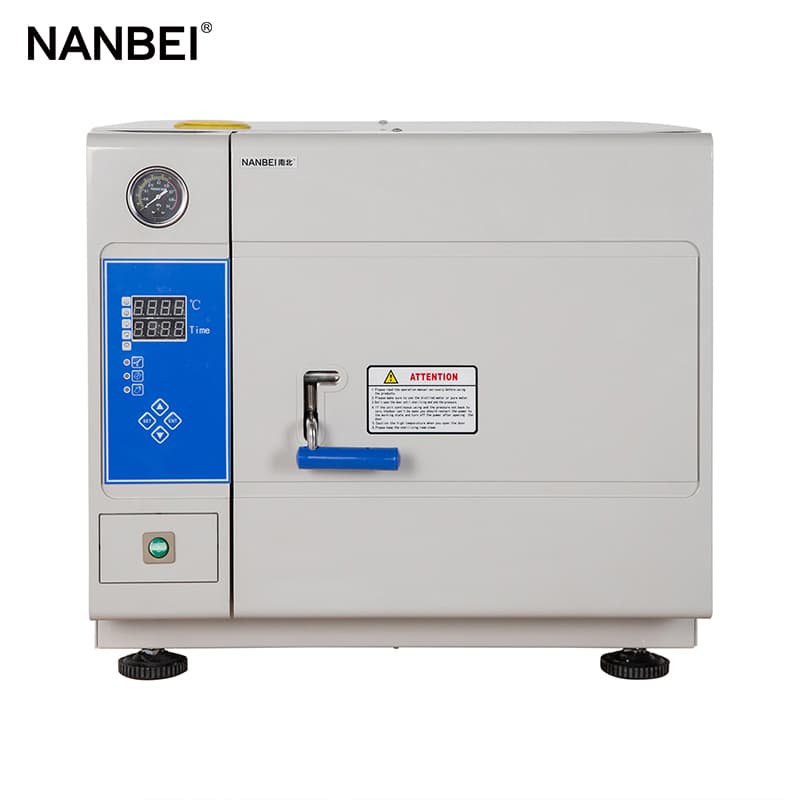

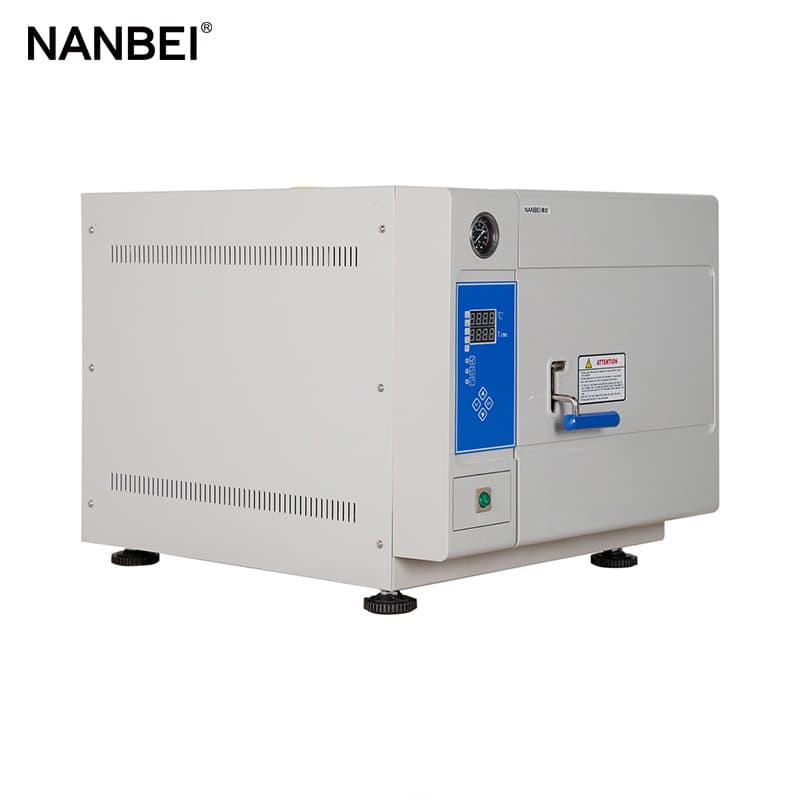

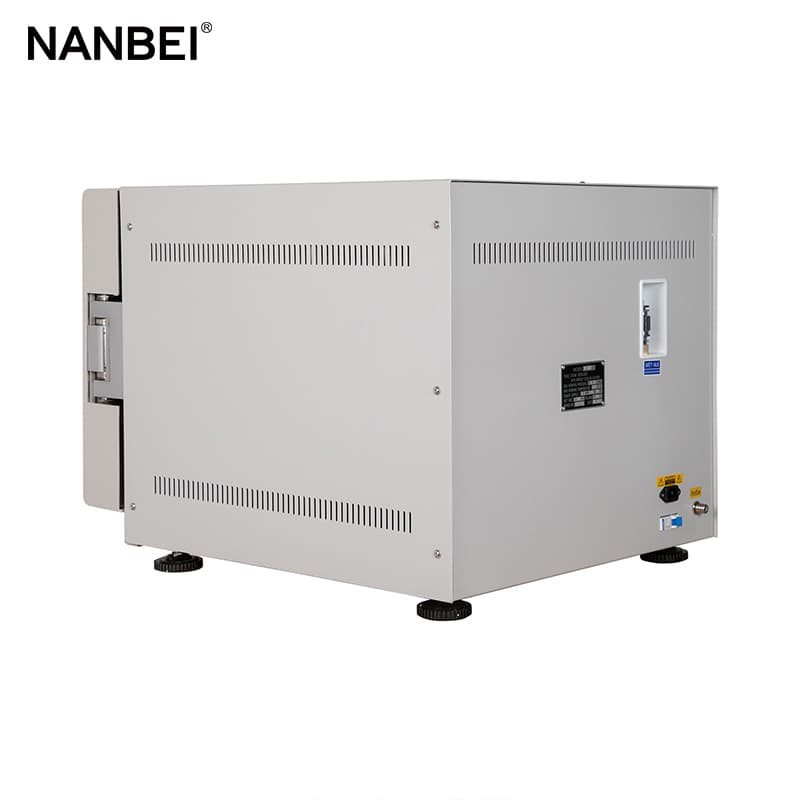

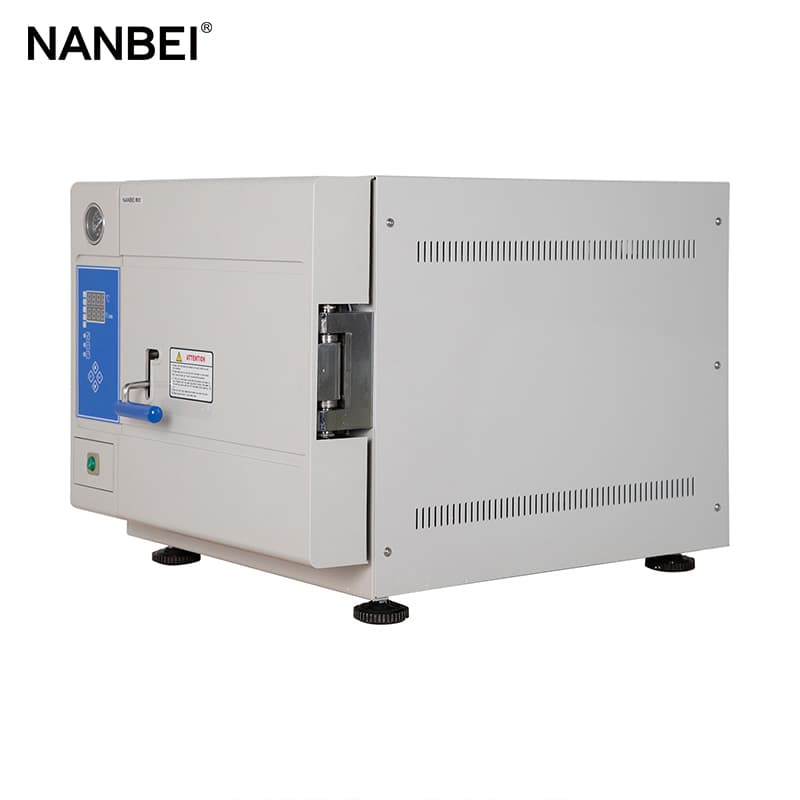

Table Top Steam Sterilizer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:TM-XD50D
Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Fully automatic microcomputer Table top steam sterilizer
Characteristics：
1.For 4~6 minutes rapidly sterilizing.
2.Digital display of working status,touch type key.
3.With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.
4.The whole process of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.
4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5.Exhaust the cool air automatically.
6.Safe protection of water lacking.

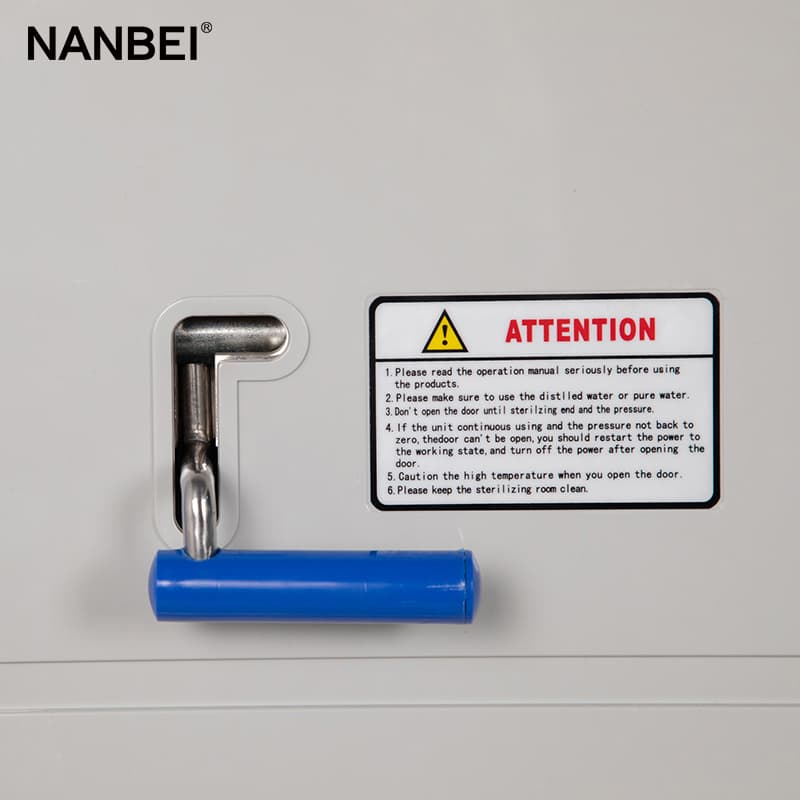

7.Door safety lock system.

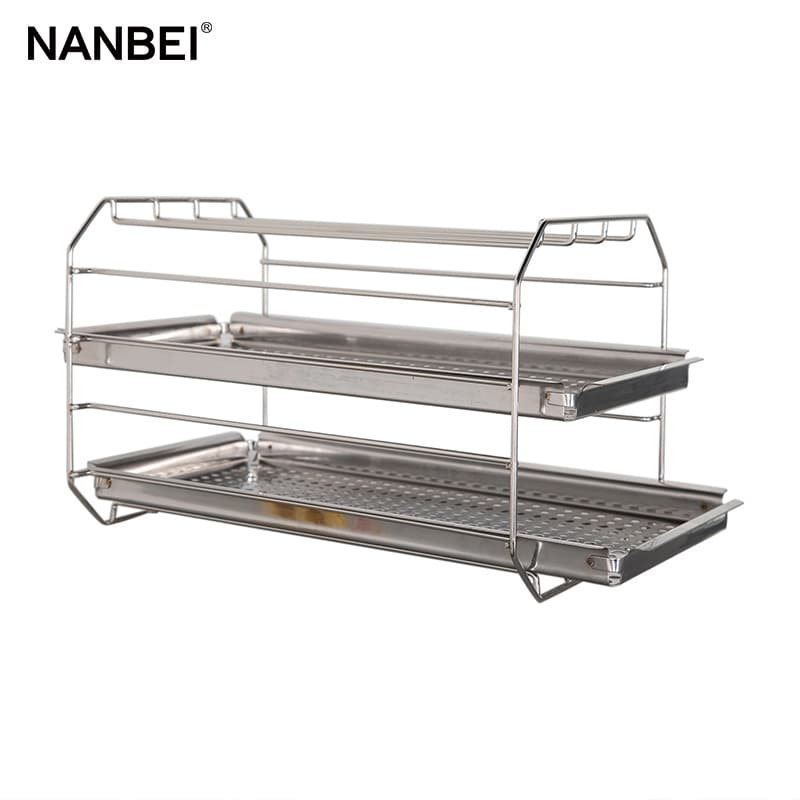

8.With four stainless steel sterilizing plates.

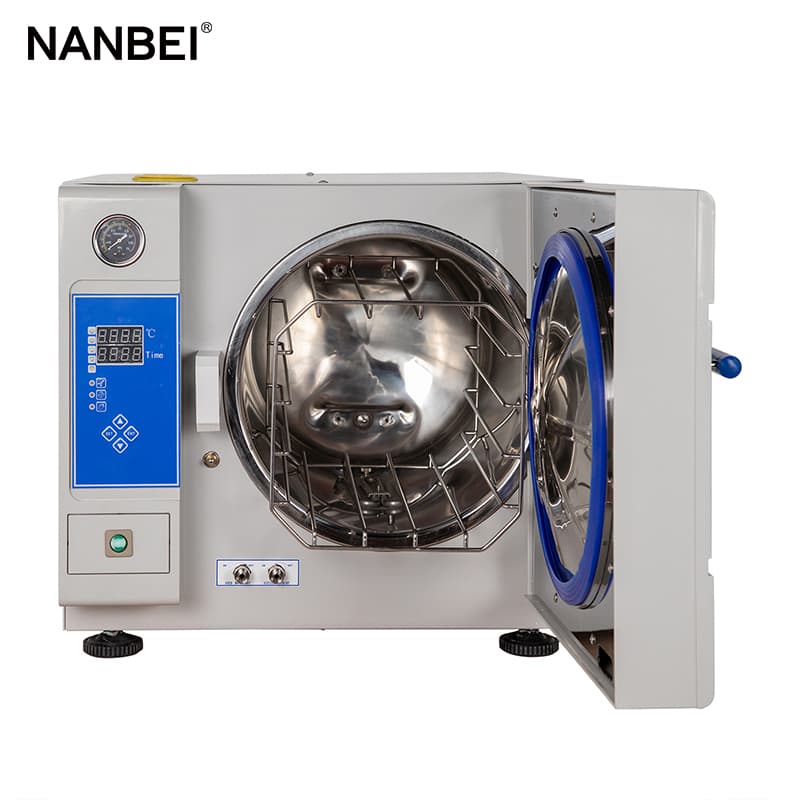

9.The chamber of the sterilizer is made of stainless steel.
10.Automatically shut off with beep reminding after sterilization.
11.With drying function.
Technical data:
MODEL TECHNICAL DATA | TM-XD35D | TM-XD50D |
Sterilizing chamber volume | 35L(φ300×500 mm) | 50L(φ340×550 mm) |
Working pressure | 0.22Mpa | |
Working temperature | 134℃ | |
Adjustment of temperature | 105-134℃ | |
Timer | 0-99 min | |
Heat average | ≤ ± 1℃ | |
Power | 2.7 KW / AC220V 50Hz | |
Sterilizing plate | 400×200×30 mm(4pieces) | 500×250×30 mm (4pieces) |
Dimension | 730×550×510 mm | 770×600×540 mm |
Package dimension | 810×680×650 mm | 880×730×700 mm |
G. W/N.W | 95/78 kg | 112/93 kg |
More pictures：
 |  |
 |  |
