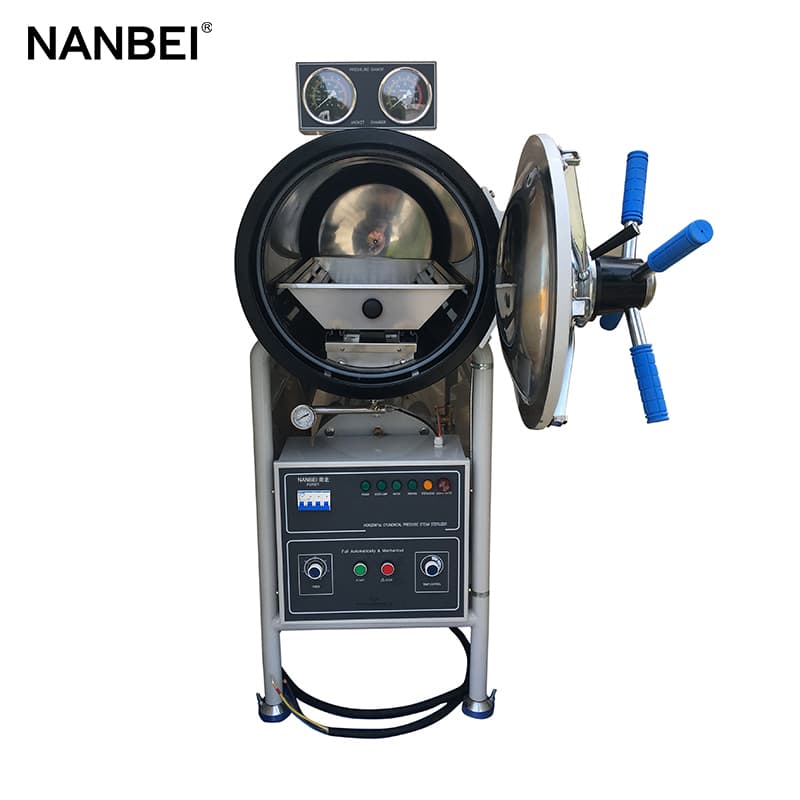

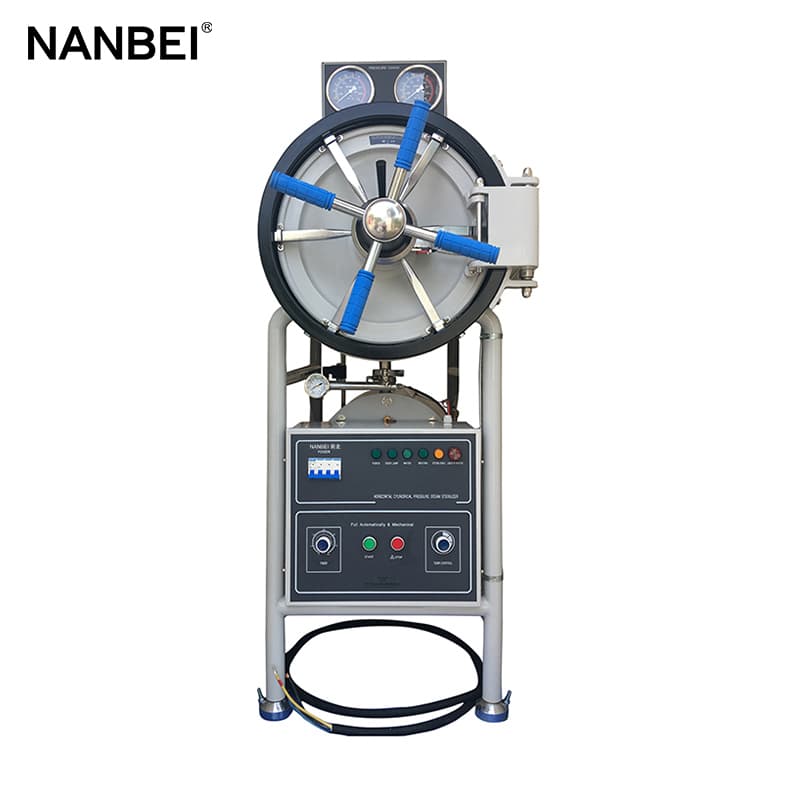

WS-400YDA 400L Horizontal Cylindrical Steam Sterilizer
WS-400YDA 400L Horizontal Cylindrical Steam Sterilizer

WS-400YDA 400L Horizontal Cylindrical Steam Sterilizer

Brand:NANBEI

Model:WS-400YDA

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

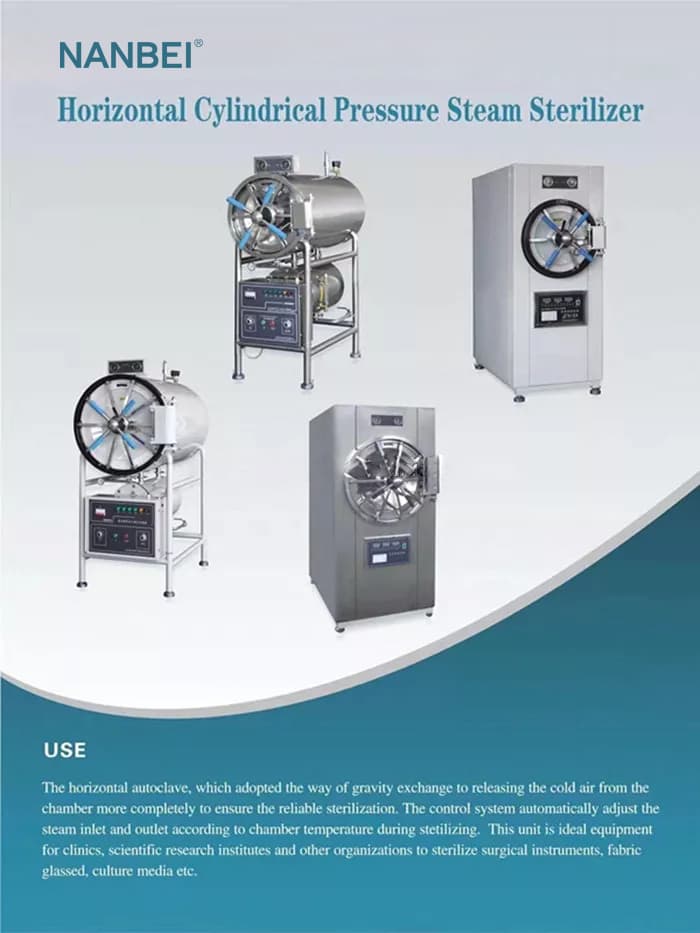

Horizontal cylindrical pressure steam sterilizer


Characteristics:

1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
Technical data:

Technical data

WS-90YDA

WS-150YDA

WS-200YDA

WS-280YDA

WS-400YDA

WS-500YDA

Sterilizing

chamber

 volume

90L

φ440×700

mm

150L

φ440×1000

mm

200L

φ515×1000

mm

280L

φ600×1000

mm

400L

Φ700×1100

mm

500L

Φ700×1300

mm

Working pressure

0.22MPa

Working

temperature

134℃

Adjustment of temperature

105℃ - 134℃

Time of sterilization

0-60 min

Time of drying

0-60 min

Heat average

≤±1℃

Power

9KW/380V

 50Hz

9KW/380V

50Hz

9KW/380V

50Hz

12KW/380V

50Hz

18KW/380V

50Hz

18KW/380V

50Hz

Dimension

(mm)

1100×600×1300

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

1800×900×1820

Transport dimension

(mm)

1250×750×1850

1550×750×1850

1560×820×1850

1680×920×2100

1800×1050×2100

1850×1050×2100

 G.W/N.W

270/200 KG

320/240 KG

350/260 KG

465/365 KG

530/520 KG

580/470 KG

We can also supply:

Electric or LPG heatedElectric                  HeatedTable top type

portable steam sterilizer

steam sterilizer

table top steam sterilizer
Please click to detailsPlease click to detailsPlease click to details
Hand round typeDigital display automationHorizontal cylindrical type

lab steam sterilizer


vertical steam sterilizer

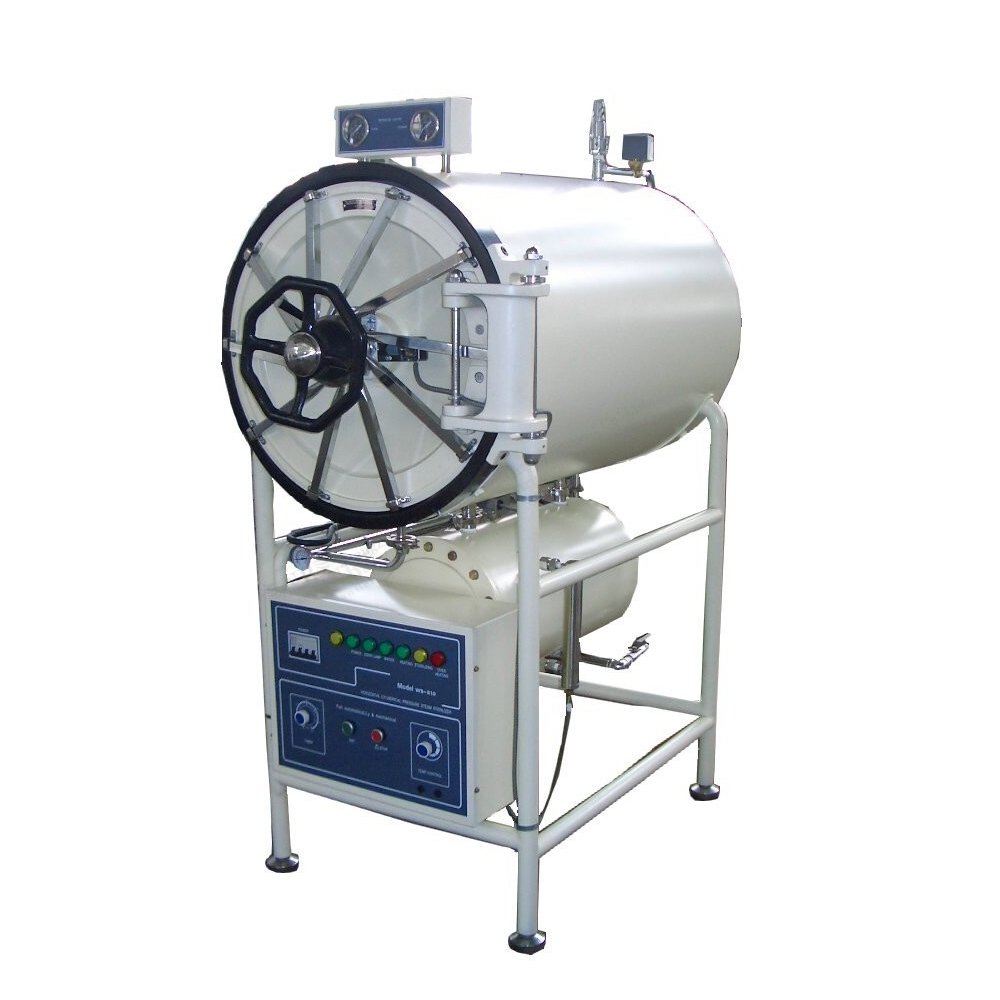

horizontal steam sterilizer
