WS-280YDC 280L Horizontal Cylindrical Steam Sterilizer_Nanbei Instrument Limited

product details

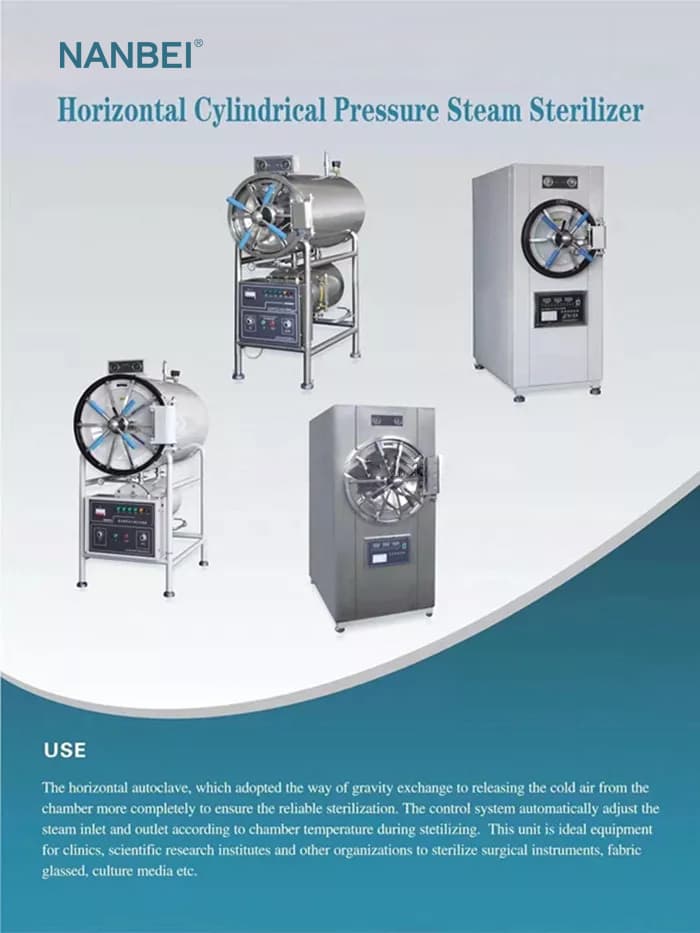

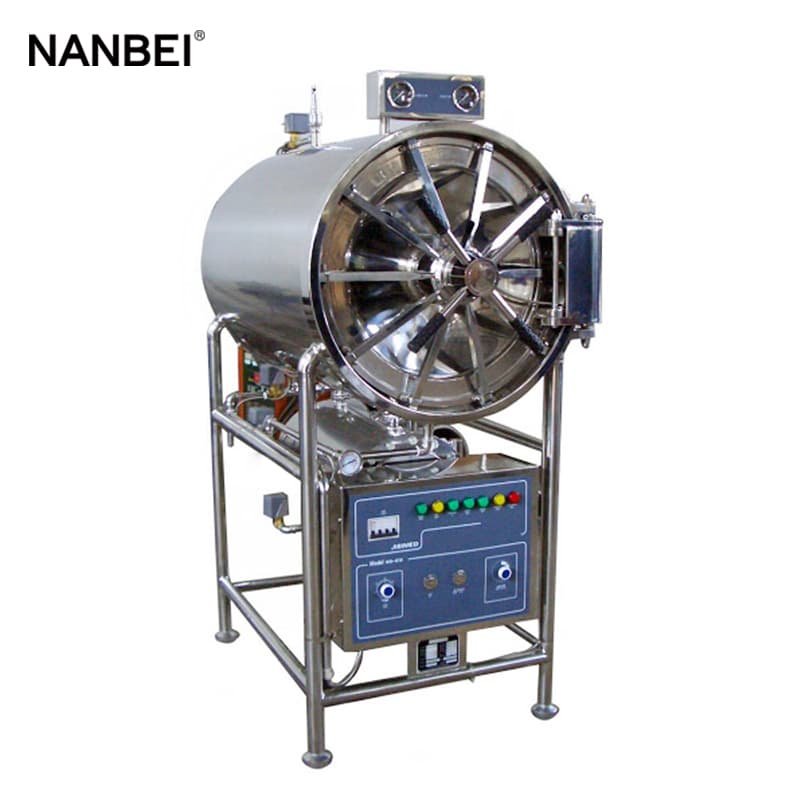

Horizontal cylindrical pressure steam sterilizer

Characteristics:

1. Sterilizing course automatic sterilization controlled,easy to operate.

2. With drying function,suitable dressing drying.

3. With over-temperature,over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

7. Fully stainless steel structure.

Technical data：

Technical data	WS-150YDC	WS-200YDC	WS-280YDC	WS-400YDC
Sterilizing chamber Volume	150L φ440×850mm	200L φ515×1000mm	280L φ600×1000mm	400L φ700×1100mm
Working pressure	0.22MPa
Working temperature	134℃
Adjustment of temperature	40℃- 134℃
Time of sterilization	0-99 min
Time of drying	0-99 min
Heat average	≤±2℃
Power	9KW/380V 50Hz	9KW/380V 50Hz	12KW/380V 50Hz	18KW/380V 50Hz
Dimension(mm)	1400×600×1300	1400×670×1650	1400×770×1780	1430×880×1830
Transport dimension(mm)	1550×750×1850	1560×820×1850	1680×920×2100	1600×1050×2100
G.W/N.W	320/240 KG	350/260 KG	465/365 KG	530/420 KG
