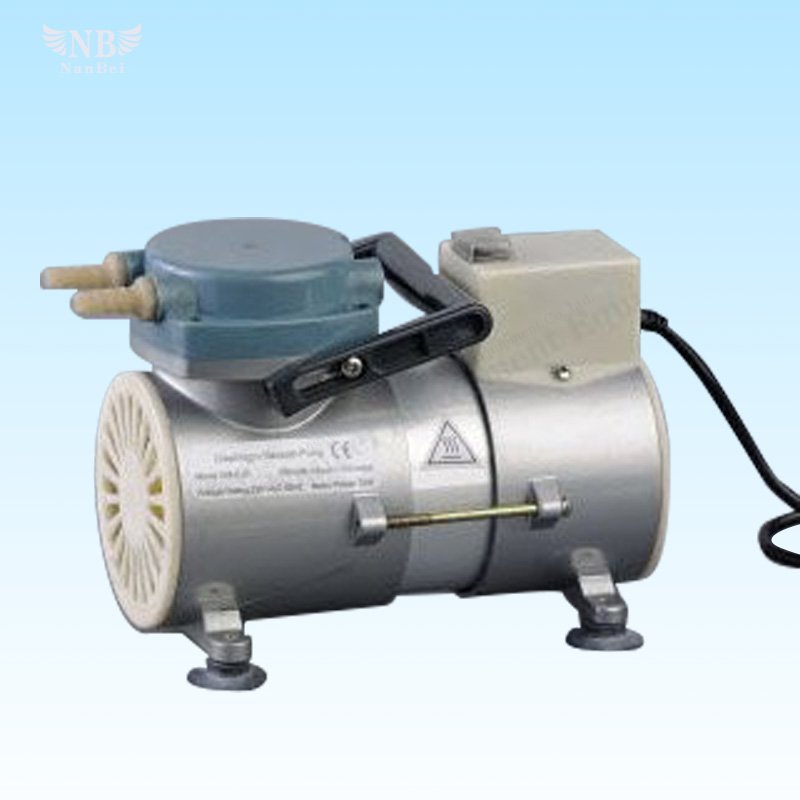

Introduction of GM-0.20
“Nanbei” GM-0.20 diaphragm vacuum pump has features of more advanced design, higher efficiency, longer operating life. It is an all new product engaging in the new and high technology. It is mainly used in medicinal products analysis, tenuously chemical engineering, biochemical pharmacy, food examination, investigating and solving criminal case, etc. It is an ideal product used with the high-accuracy chromatogram apparatus and HPLC solvent filter, and it is the essential equipment in the laboratory.
The body of “Nanbei” GM-0.20 diaphragm vacuum pump is made of aluminum alloy through die casting. It is antiseptic, sprayed, agile and beautiful. It has the features of higher antisepsis, wider working range. It can be used in all kinds of working environments.
Speed of Evacuation(L/Min) | 15 | Temp of the body（℃） | <55 |
Ultimate pressure Vacuum | ≥0.075Mpa 250mbar | Dimensions (L x B x H)（ｍｍ） | 195×98×156 |
Pressure | ≥30 Psi | Noise Level（DB） | <50 |
Inlet (mm) Outlet (mm) | φ6 φ6 | Weight（Kg） | 4 |
Motor Power（w） | 75 | Pump Head | Nylon |
Temperature of working environment（℃） | 7—40 | Function | Vacuum & Pressure |
Attachments
connecting rubber pipe(Φ7ｍｍ*Φ12ｍｍ*800ｍｍ) 1 piece
