Brand:NANBEI
Model:GY-5,GY-10,GY-20,GY-30,GY-50,GY-80,GY-100,GY-200
Application:

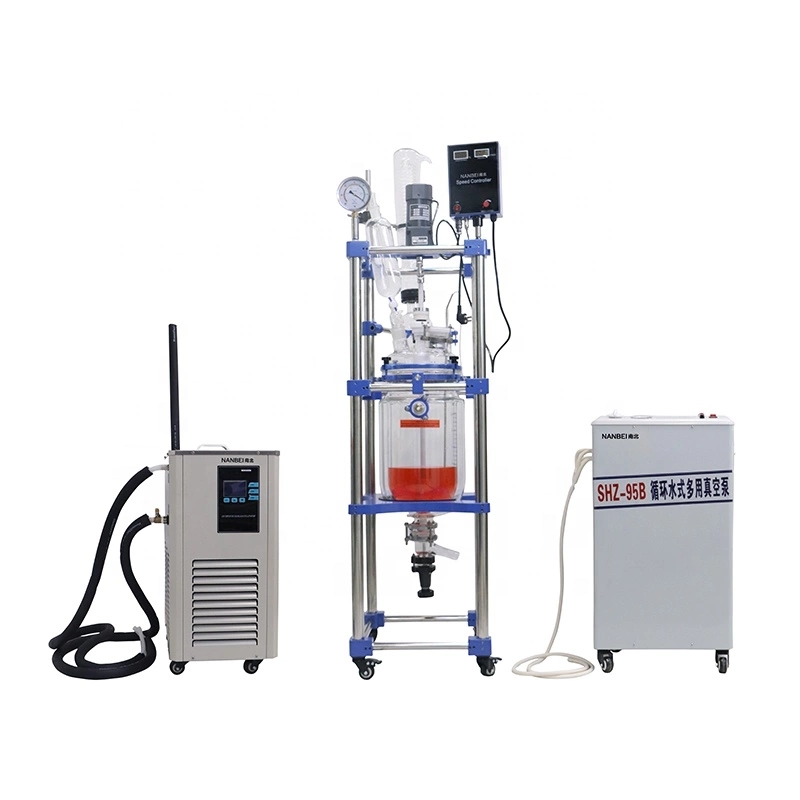

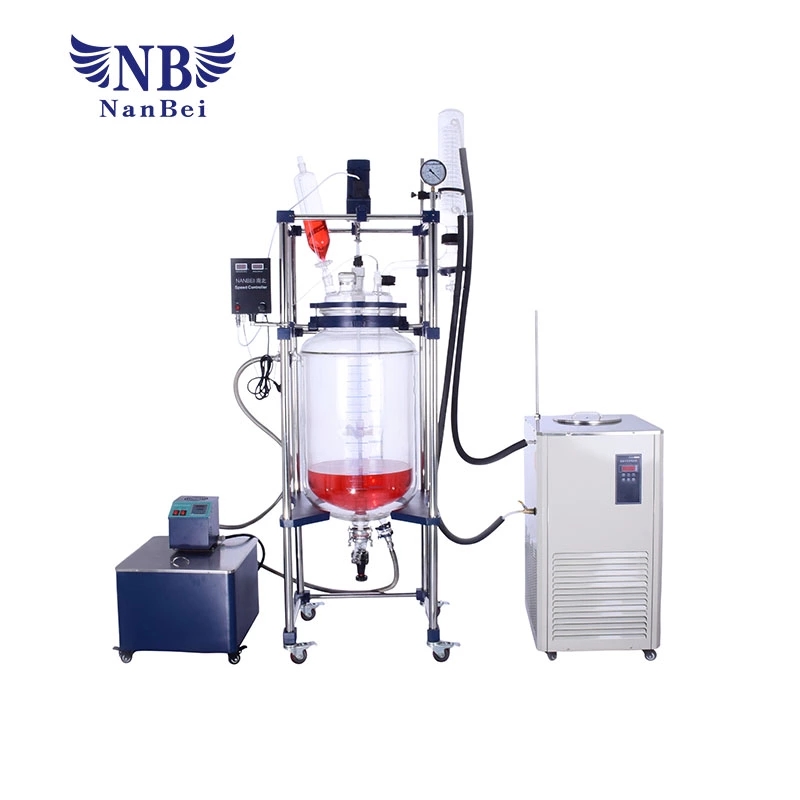

Oil (water) Bath is a new type of equipment developed by our company. It is an indispensable instrument for double-layer glass reactor, stainless steel and enamel reaction kettle to do high temperature reaction. It has the advantages of fast heating, uniform temperature, precise temperature control and fast heating
Model | GY-5 | GY-10,20 | GY-30,50 | GY-80,100 | ||
For jacketed glass reactor | 1-5L | 10-20L | 30-50L | 80-100L | ||
Main material | 304SUS | |||||
volume(L) | 12 | 28 | 50 | 71 | ||
Oil pump power(W) | 40 | 120 | ||||
Heating power(KW) | 2 | 3 | 5 | 8 | ||
Votlage/Frequency | 220V/50Hz | 380V/50Hz | ||||
FlowL/MIN | 5-10 | |||||
Head(M) | 8-12 | |||||
Out of the nozzle | 4 | 6 | ||||
Out of the tubing | Silicone tube | Stainless steel bellows | ||||
Temperature control | Intelligent temperature control | |||||
Temperature display | K type sensor digital display | |||||
Temp. range | 0-300℃ | |||||
Temp. accuracy | ±1℃ | |||||
Inner size(mm) | Diameter 250*240 | 390*280*255 | 430*430*270 | 490*440*330 | ||
Chamber size(mm) | 305*305*440 | 500*400*315 | 500*500*315 | 550*500*350 | ||
Dimension(mm) | 435*305*630 | 630*400*630 | 630*500*630 | 680*500*665 | ||
Packing size(mm) | 590*460*460 | 730*500*830 | 730*600*830 | 780*600*865 | ||
Packing weiht(KG) | 16 | 33 | 36 | 40 |
