Plus Bottle-Top Dispenser
Plus Bottle-Top Dispenser

Plus Bottle-Top Dispenser

Brand:NANBEI

Model:

Application:

product details

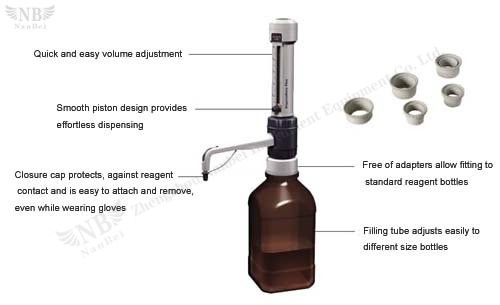

DispensMate Plus



Bottle-Top Dispenser

Features:
- Excellent chemical resistance
- Fully autoclavable at 121℃
- Four ranges of bottle-top dispenser cover a volume range from 0.5ml to 50ml
- Easy to clean and maintain
- The optional flexible discharge tube with safety handle permits fast and precise dispensing
- Made of PTFE、FEP、BSG、PP
- Vapor pressure Max. 500mbar, viscosity max. 500mm2/s,temperature max. 40℃, density max. 2.2g/cm3
- DispensMate plus is supplied with S40, GL32, GL38, GL25, GL28 sized adapters

lab pipette


 Specifications

Volume Range
ml
  Graduation
  ml
A≤±                         CV≤
% μl % μl
0.5-5 0.1 0.5 25 0.1 5
1.0-10 0.2 0.5 50 0.1 10
2.5-25 0.5 0.5 125 0.1 25
5.0-50 1.0 0.5 250 0.1 50

A = Accuracy;  CV = Coefficient of variation

Ordering information

 Cat. No.                                Volume Range (ml)
731100010000 0.5-5
731100020000 1-10
731100030000 2.5-25
731100040000 5-50
Accessories
17000069 S40,Adapter,45/40mm
17400017 GL32,Adapter,45/32mm
17400018 GL38,Adapter,45/38mm
17400019 GL25,Adapter,32/25mm
17400020 GL28,Adapter,32/28mm
17400037 Reagent Bottle (Brown, 1L)
17400021 Filling tube (m)
17400073 Discharge tube (m)



Attachment:

DispensMate plus Bottle-top Dispenser Chemical Compatibility at 20℃

The devices of Dragonlab-DispensMate plus which contact with dispensed liquid consist of BSG, PTEF, FEP, and closure cap of outlet is PP; non contact liquids parts consist of PC and other materials. Please note that these tables are just a directional guide not the manufacturer's commitment. Please read the user manual carefully before use and to do related experiments necessarily, which can be used to determine whether should be used. Good laboratory practice would be to rinse out the liquid handing unit at the end of each day with distilled water to prevent corrosive liquids being left in contact with the parts for too long.

We referred to the general technical data and public information from related companies. The table below is not our proprietary data, for user's reference only.


Chemical

BSG      PTFE     FEP    PC

      PP
Acids
Acetic, Glacial R     NR R
Acetic, 25% R R
