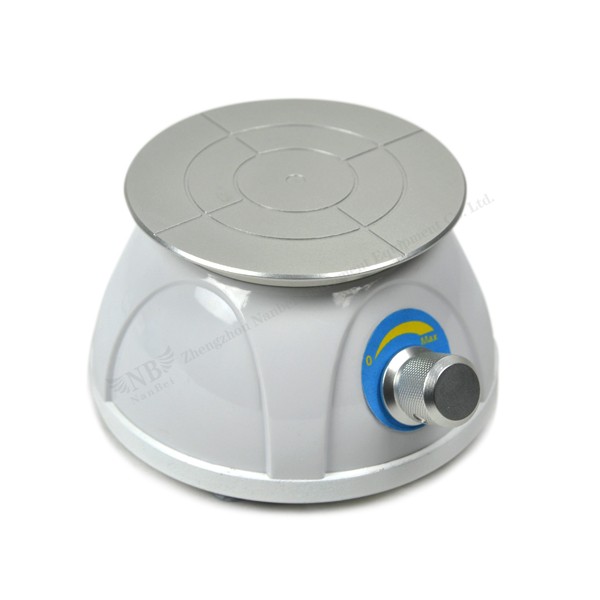

MINI-18 Magnetic stirrer
MINI-18 Magnetic stirrer

MINI-18 Magnetic stirrer

Brand:NANBEI

Model:MINI-18

Application:

product details

Features:

1. Speed range of 300-1850 rpm
2. Max. Stirring quantity 260mL
3. Aluminum is extremely resistant to corrosion and easily clean
4. LCD displays target and actual speeds.
5. Brushless DC motor maintenance free and explosion-proofed accurately control speed
Parameters:

Dimension of work plate [mm] Φ88mm
Work plate material Aluminum
Motor type DC brushless motor
Motor rating input [W] 1.2W
Motor rating output [W] 0.8W
Power [W] 30
Voltage [VAC] 100-240
Frequency [Hz] 50/60
Stirring positions 1
Speed range [rpm] 300 - 1800 rpm
Protection class according to DIN EN60529 IP21
Dimension [W x D x H] mm 125x110x70mm
Weight [kg] 1.2
Permissible ambient temperature [°C] 5-40
Permissible relative humidity 80%


magnetic hotplate stirrer
