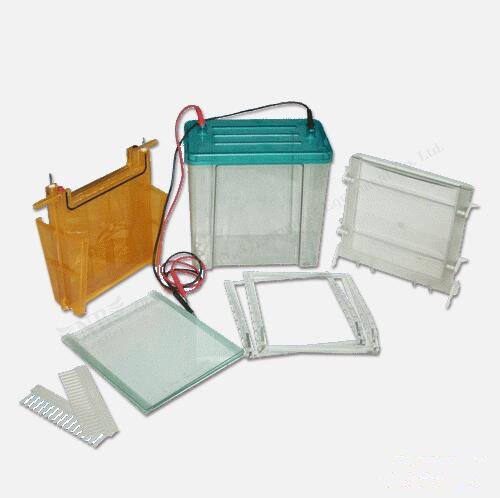

Electrophoresis Cell
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:DYCZ-24F
Application:For SDS-PAGE,Protein gel, Native PAGE, and second dimension of two-dimensional gel electrophoresis, etc
Model: DYCZ – 24F
Features:
■ Special wedge frame design can fix gel rooms firmly;
■ Molded buffer tank equipted the electrodes with pure platinum;
■ Gel casting device (1.0,1.5 mm) make it convenient to cast the gel;
■ Built-in heat exchanger can eliminate the heat produced during the running;
■ Run one gel or run two gels at the same time;
■ Special lid design avoids mistakes during the operation;
■ Power fails when you open the lid for user’s safe;
■ High resolution separation with simple operation.
Specifications:
■ Gel dimensions( L X W): 200 × 175 (mm);
■ Combs: 16 well × 1.0mm, 167 μl volume;
16 well × 1.5mm, 251 μl volume;
21 well × 1.0mm, 132 μl volume;
16 well × 1.5mm, 198 μl volume;
(Four kinds of combs for you to choose)
■ Runs up to 16 or 21 samples:
■ Buffer volume: about 3,500ml;
■ Size (L×W×H): 300 × 160 × 300 (mm);
■ Weight: about 4.0 kg.
Applications:
For SDS-PAGE, Native PAGE, and second dimension of two-dimensional gel electrophoresis, etc.
Recommend Electrophoresis Power Supply:
DYY – 10C, DYY – 12.
