Production Freeze Dryer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NB-30F
Application:

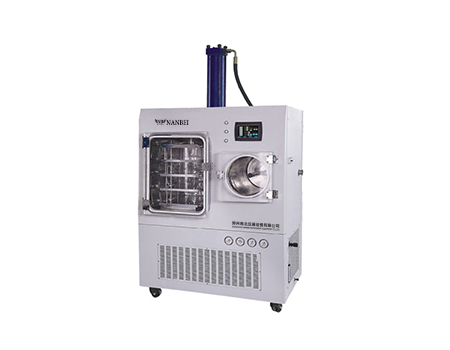

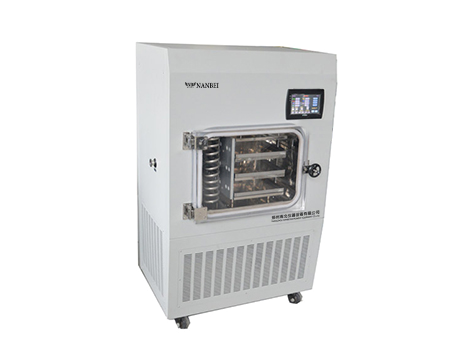

NB-30F Silicone Oil Heating Freeze-Drying Machine
Features
●Pre-freeze drying process at in situ situation, reduce the complicate operation from drying process, become automatically;
● Shelf temperature differences ± 1 ℃, dry effect uniform;
● Intermediate medium circulation technique, shelf can refrigeration, heating, temperature adjustable, controllable, pilot scale test and production process;
● Due to drying chamber and cold trap for fission structure, special gas circuit designed, capture water ability is strong and drying time to be short;
● Embedded touch screen, PLC controlled and PID temperature controlled display lyophilized curve and history curve;
● Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
● Optional eutectic point test device;
● U disk data available;
● Equipped with PC software can print curve, browsing curve, modify data;
●Square tray is shape not easily to deformed, easy to operate and clean;
● Can be configured charging valve, rechargeable dry inert gas.
● Drying chamber adopts high light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;
●Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.
Parameters
| Drying chamber | NB-30F | Ordinary | Top-Press |
| Drying Area | 0.3 m2 | 0.3 m2 | |
| No.of Tray | 3+1 layer | 3+1 layer | |
| Temp. Range | -70～70 ℃ | -70～70 ℃ | |
| Shelf Gap | 50 mm | 70 mm | |
| Shelf Size | 400mm×270mm | 400mm×270mm | |
| Capture water trap | φ22 Schering bottles | 540 | 540 |
| φ16 Schering bottles | 1080 | 1080 | |
| φ12 Schering bottles | 1950 | 1950 | |
| Temperature | -70℃（No-load） | -70℃（No-load） | |
| Ability to Capture Water | 6Kg/24h | 6Kg/24h | |
| Parameters | Power | 2.1 kw | 2.1kw |
| Power Supply | 380V 50/60Hz | 380/60Hz | |
| Plate Load Capacity | 3 L | 3 L | |
| Electric Defrost | √ | ||
| Vacuum | <10 Pa | <10 Pa | |
| Dimension | 1100×680×1240 mm | 1100×760×1300 mm | |
| Drying chamber shape | square | square | |
| N.W./ G.W | 335KG/ 385KG | 360KG/400KG | |
| PIC |  |  | |
Remark: This product is for civilian use only
