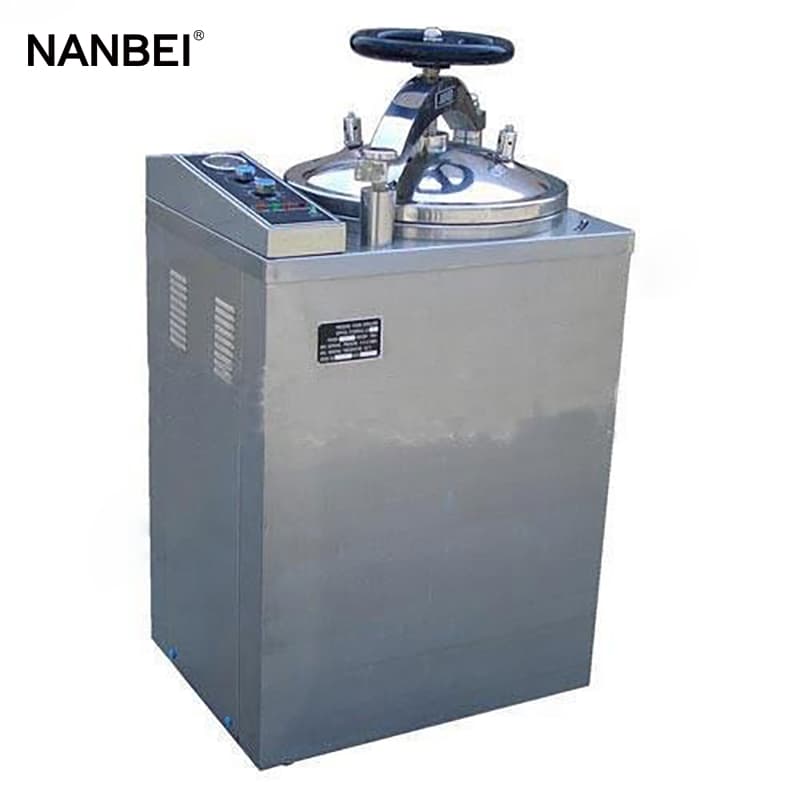

LS-75HG 75L Fully Automatic Vertical Pressure Steam Sterilizer

LS-75HG 75L Fully Automatic Vertical Pressure Steam Sterilizer

Brand:NANBEI

Model:LS-75HG

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

CONTACT NOW Chat Now

product details

Vertical pressure steam sterilizer (Fully automatic microcomputer)


Characteristics:

1.Fully stainless steel structure

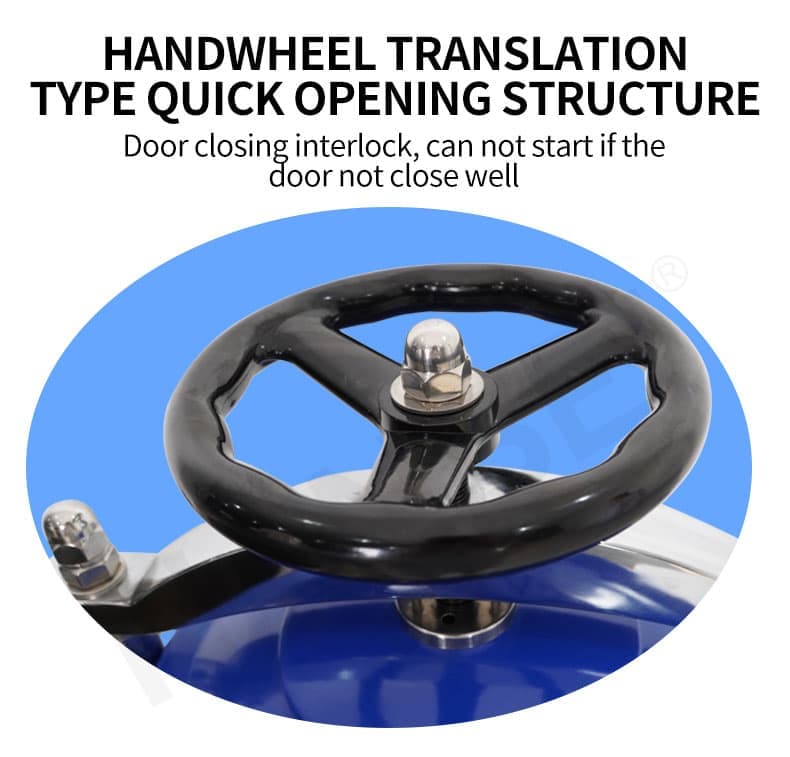

2.Hand wheel type of quick-open door structure

3.Door safety lock system

4.Automatically controlled by computer

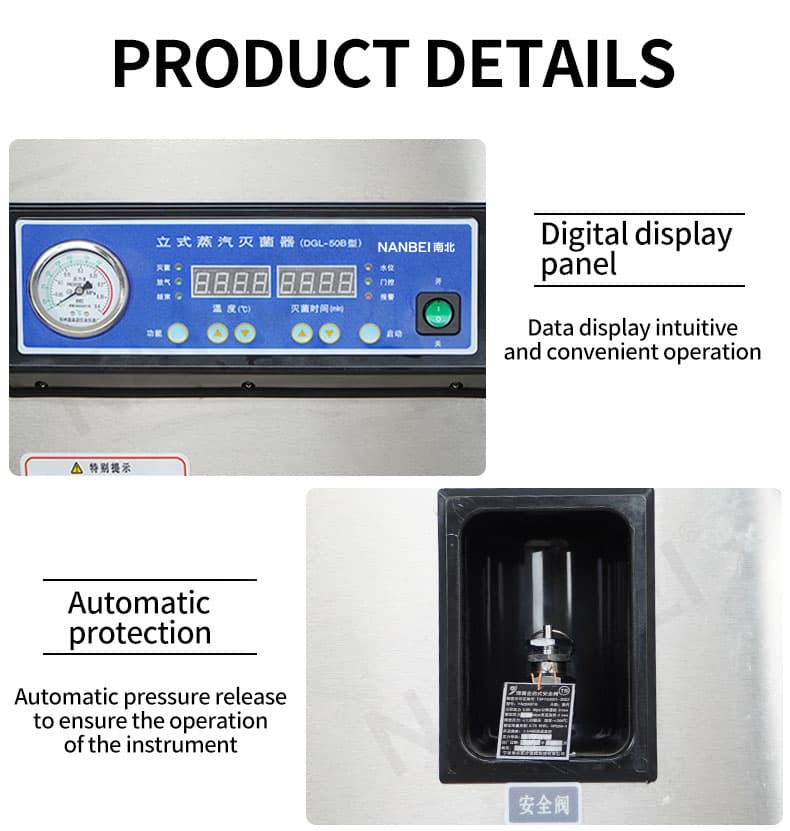

5.Digital display of working status,touch of key

6.Over temperature&over pressure auto-protection

7.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry

8.Self-inflating type seal

9.Safe protection of water lacking

10.The drying system is optional,which can be equipped according to the customers' request

11.Automatically shut off with beep reminding after sterilization

12.With two stainless steel sterilizing baskets

Technical Data:

Technical Data	LS-35HG	LS-50HG	LS-75HG	LS-100HG
Chamber volume	35L (φ318×450)mm	50L (φ340×550)mm	75L (φ400×600)mm	100L (φ440×650)mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23Mpa
Heat average	≤±1℃
Timer	0～99min OR 0～99hour59 min
Adjustment of temperature	0～134℃
Power	2.5KW/AC220V.50Hz	3KW /AC220V.50Hz	4.5KW /AC220V.50Hz
Overall dimension	600×410×1030mm	650×410×1140 mm	690×470×1140 mm	730×510×1270 mm
Transport dimension	730×500×1170 mm	730×500×1290 mm	760×550×1290 mm	820×600×1380 mm
G.W/N.W	96Kg/ 77Kg	102Kg/ 83Kg	120Kg/98Kg	135/110Kg
