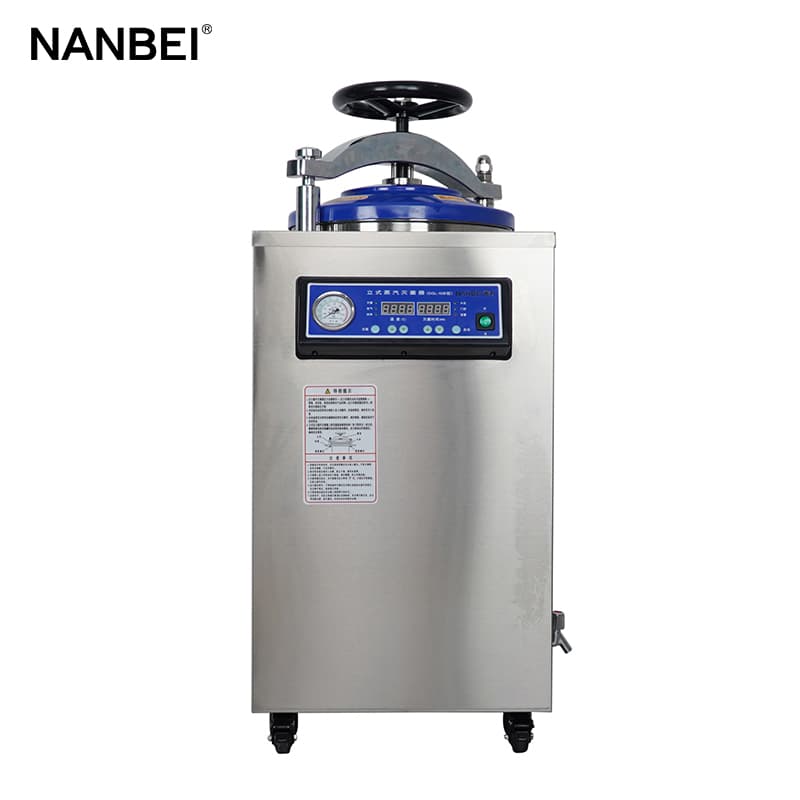

LS-35HJ 35L Hand Round Vertical Pressure Steam Sterilizer
LS-35HJ 35L Hand Round Vertical Pressure Steam Sterilizer

LS-35HJ 35L Hand Round Vertical Pressure Steam Sterilizer

Brand:NANBEI

Model:LS-35HJ

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

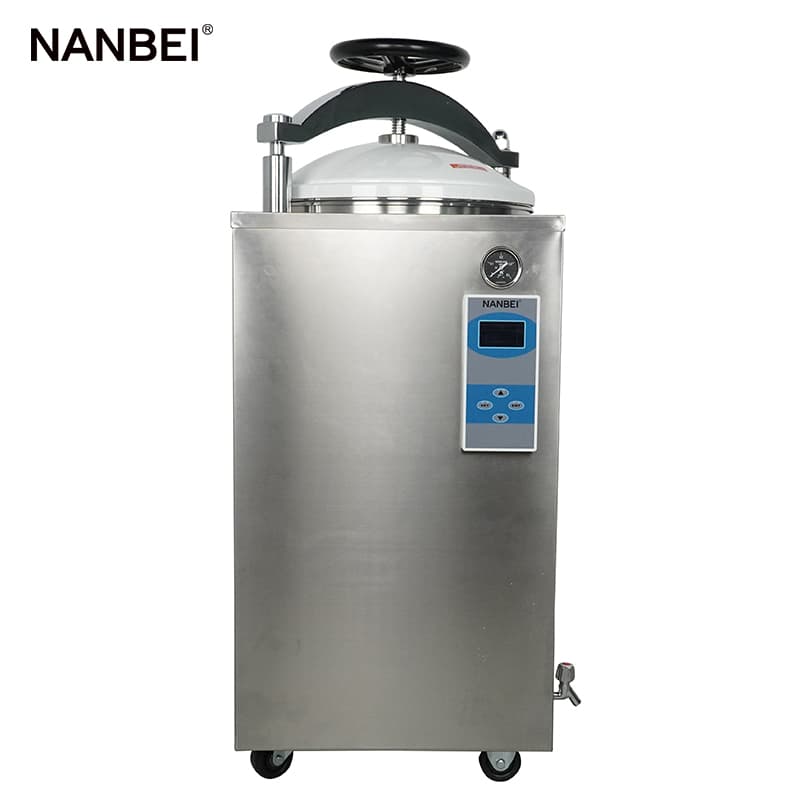

Hand round vertical pressure steam sterilizer


Characteristics:
1.Fully stainless steel structure

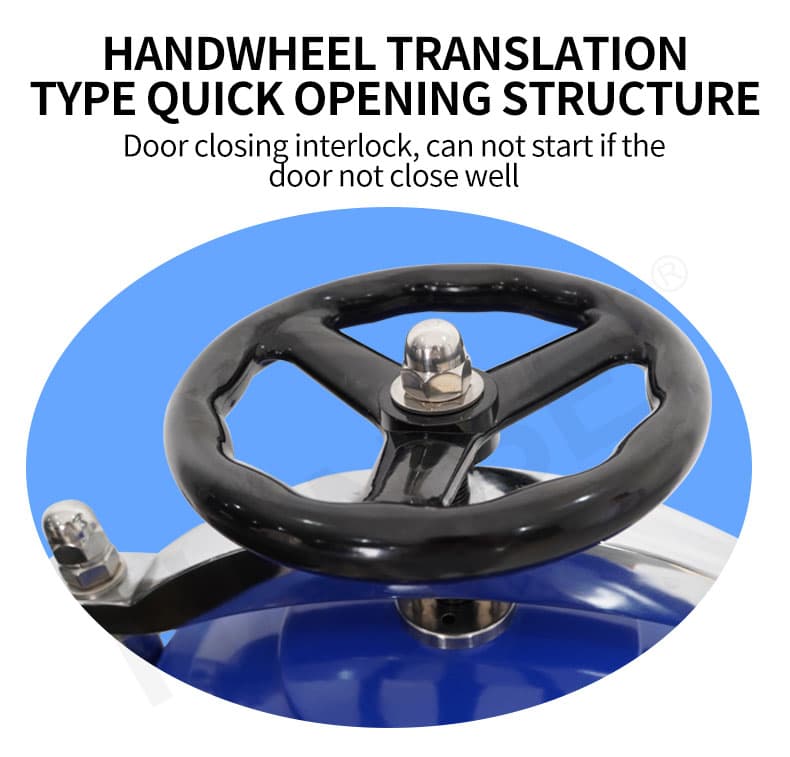

2.Hand wheel type of quick-open door structure
3.Pressure safety lock

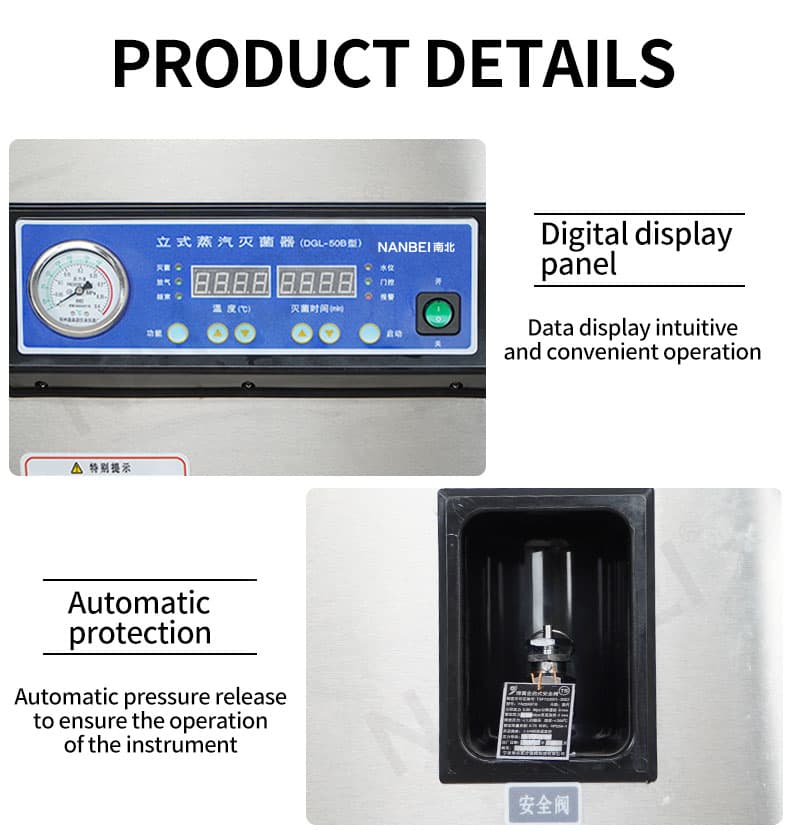

4.Indicator light indicates working state
5.Over temperature & over pressure auto-protection
6.Double scale indication pressure gauge
7.Self inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate,safe and reliable

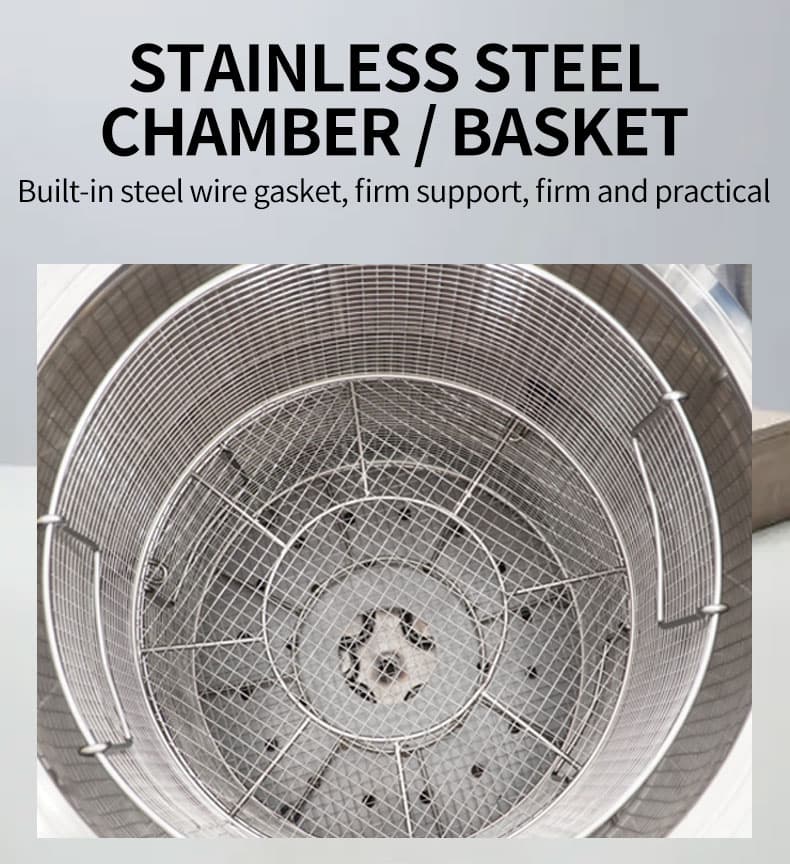

11.With two stainless steel sterilizing baskets



Technical Data:
Model
Technical data
LS-35HJ
LS-50HJ
LS-75HJ
LS-100HJ
Chamber volume
35L(φ318×450)mm
50L(φ340×550)mm
75L(φ400×600)mm
100L(φ440×650)mm
 working pressure
0.22MPa
0.14MPa
Working temperature
134℃
126℃
Max working pressure
0.23 Mpa
0.165MPa
Heat average
≤±1℃
Timer
0~60min
Adjustment of temperature
105~134℃
105~126℃
Power
2.5Kw/AC220V.50Hz
3Kw /AC220V.50Hz
4.5KW /AC220V.50Hz
Overall dimension
450×450×1010(mm)
510×470×1130(mm)
560×560×1120(mm)
540×560×1250(mm)
Transport dimension
570×550×1150(mm)
590×590×1280(mm)
650×630×1280(mm)
680×630×1370(mm)
G.W/N.W
72Kg/ 56Kg
88Kg/ 68Kg
100Kg/80Kg
110 Kg/85Kg
