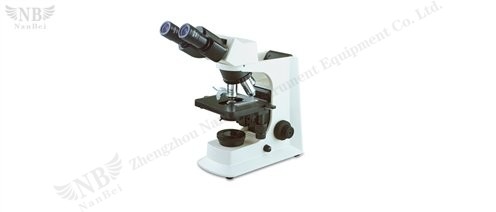

Smart Series Biological Microscope SMART-2

Brand:NANBEI

Model:SMART-2

Application:

CONTACT NOW Chat Now

product details

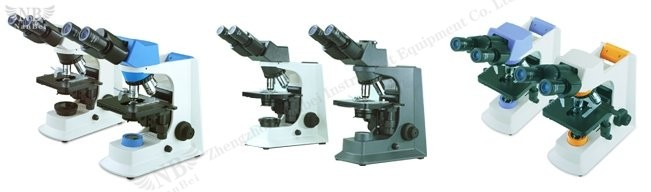

Smart Series Biological Microscope

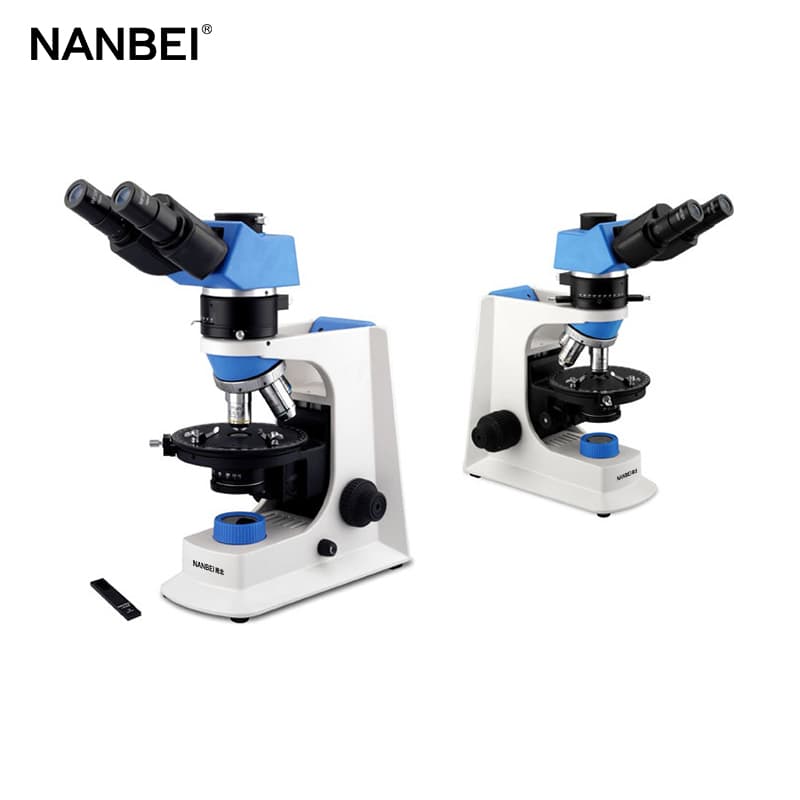

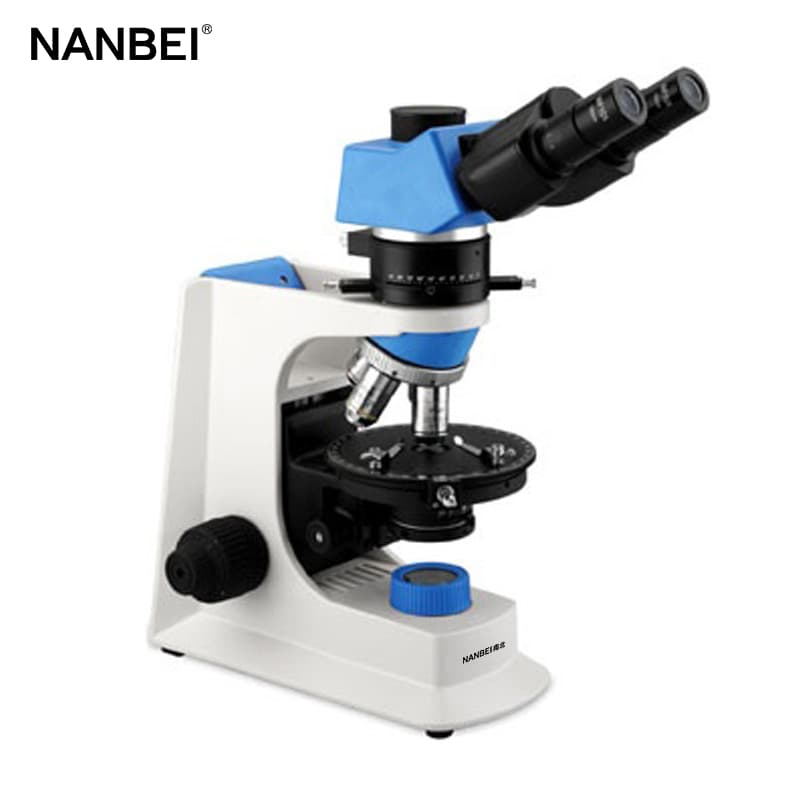

SMART Polarizing Unit


SMART Series Biological Microscope Outfits

Items	Specification	SMART-1	SMART-2	SMART-3
Eyepiece	WF 10X-18 mm	●●
	WF 10X-20 mm		●●	●●
	WF 16X-13 mm	○○	○○	○○
	Reticule Eyepiece WF 10X-18mm (0.1mm)	○	○	○
	Reticule Eyepiece WF 10X-20mm (0.1mm)	○	○	○
Achromatic Objective	4X	●
	10X	●
	40X(S)	●
	100X/1.25 (Oil) (S)	●
	20X	○
	60X (S)	○
Plan Objective	4X		●
	10X		●
	40X/0.65 (S)		●
	100X/1.25 (Oil) (S)		●
	20X		○
	60X (S)		○
Infinity E-Plan Objectives	4X			●
	10X			●
	40X (S)			●
	100X (Oil) (S)			●
	Plan 20X			○
	Plan 60X (S)			○
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm	●	●	●
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80	○	○	○
Nosepiece	Quadplex	●	●	●
Mechanical Stage	Stage Size: 145X140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder	●	●	●
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	●	●	●
Illumination	6V/20W Halogen Lamp	●	●	●
	6V/30W Halogen Lamp	○	○	○
	3W-LED Illumination Systems (non-rechargeable)	○	○	○
	0.3W-LED Illumination Systems(rechargeable)	○	○	○
Field Diaphragm		○	○	○
Dark Field Unit	N.A.0.9 (Dry)	○	○	○
Polarizing Attachment	Analyzer/Polarizer	○	○	○
Independent phase contrast unit	10X /20X /40X /100X			○
Fluorescence unit	Epi Fluorescence unit (three-hole slide) (B,G, 100W mercury lamp )	○	○	○
Filter	Blue	●	●	●
	Green	○	○	○
	Yellow	○	○	○
C-Mount	0.47X（Focus adjustable）	○	○	○
C-Mount	1X	○	○	○
Mirror		○	○	○
Wire winding device		○	○	○
