SZ760 Series Technical Specification:
Optical system Greenough
Zoom ratio 1∶7.6
Magnification 6.6×～50×
Objective zoom range 0.66×～5×
10×Eyepiece 10×/Φ23mm high point, diopter adjustable
Standard working distance 110mm
Interpupillary distance 54mm～76mm
Observing tube Binocular/Trinocular/built-in digital camera 45°inclined, 360°rotatable.
Up illumination 3W LED （optional :12V/15W halogen）
Down illumination 3W LED （optional :12V/15W halogen）
Optional eyepiece 20×/Φ13mm（focus adjustable）,
25×/Φ11mm（focus adjustable）
Additional objective 0.5×W.D. 189mm
0.75×W.D. 122mm
2× W.D. 36mm

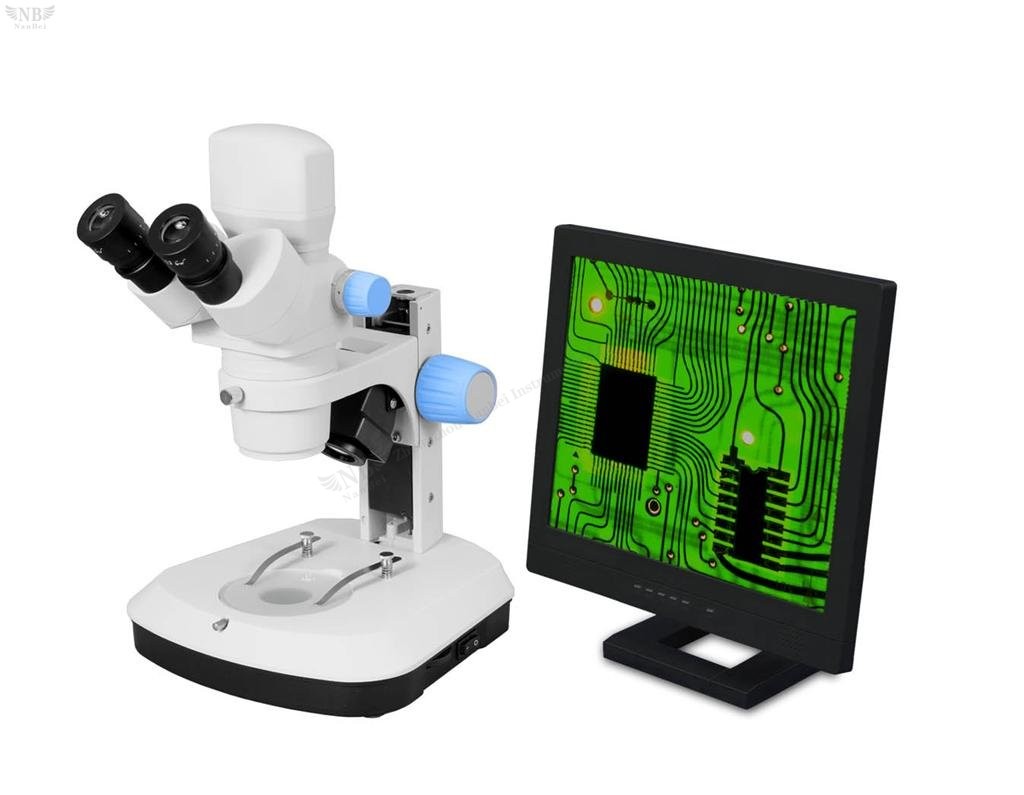

SZ760 DM320/500 Digital Stereo Microscope Pecifications
◇Dustproof, moisture-proof, against disassemble, built-in digital chip, integrated design.
◇Light distribution 20:80,eyepiece observation synchronized with the imaging from digital camera.
◇Built in 3MP/5MP digital camera,1/2'' CMOS colorful sequential scanning.
◇USB2.0 connection, without external power supply.
◇Available for WINDOWS 2000 /XP/ 7 /Vista system.
Multi-functional accessory ,available for different demands.

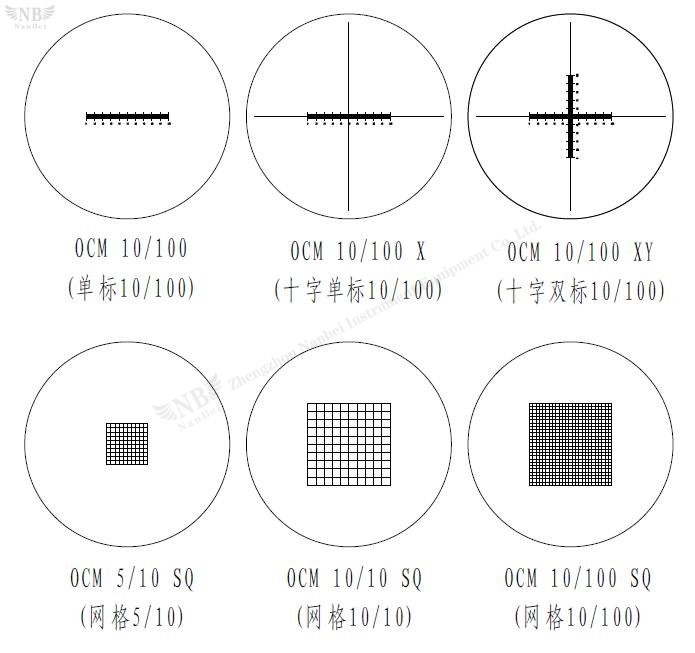

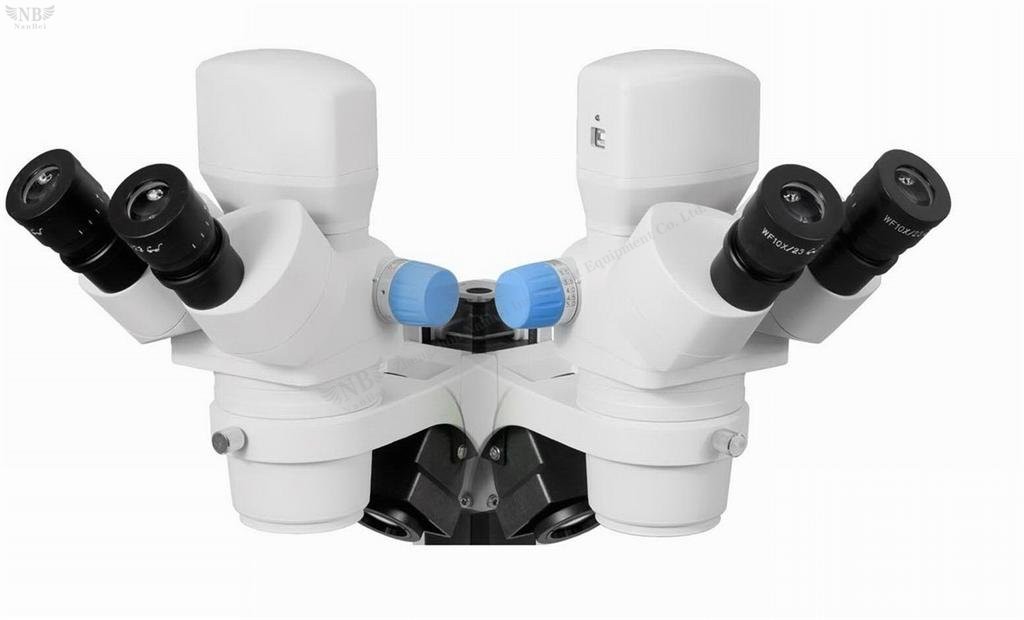

Trinocular synchronization Imaging, eyepiece observation Different size reticule eyepiece synchronized with digital imaging.
Additional objective Φ23mm Large Field 、Diopter Adjustable Eyepiece C-mount
 |  |
 |  |

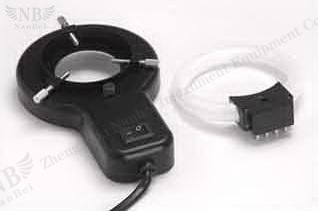

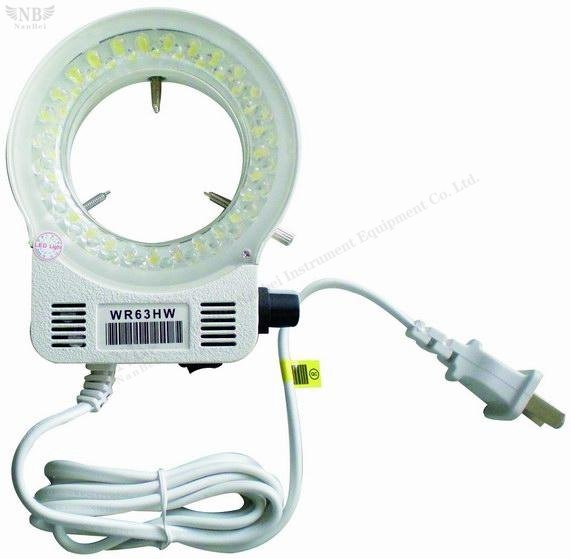

Ring fluorescent light Ring LED light 2D Travelling Stage Brightness Adjustable Halogen Light

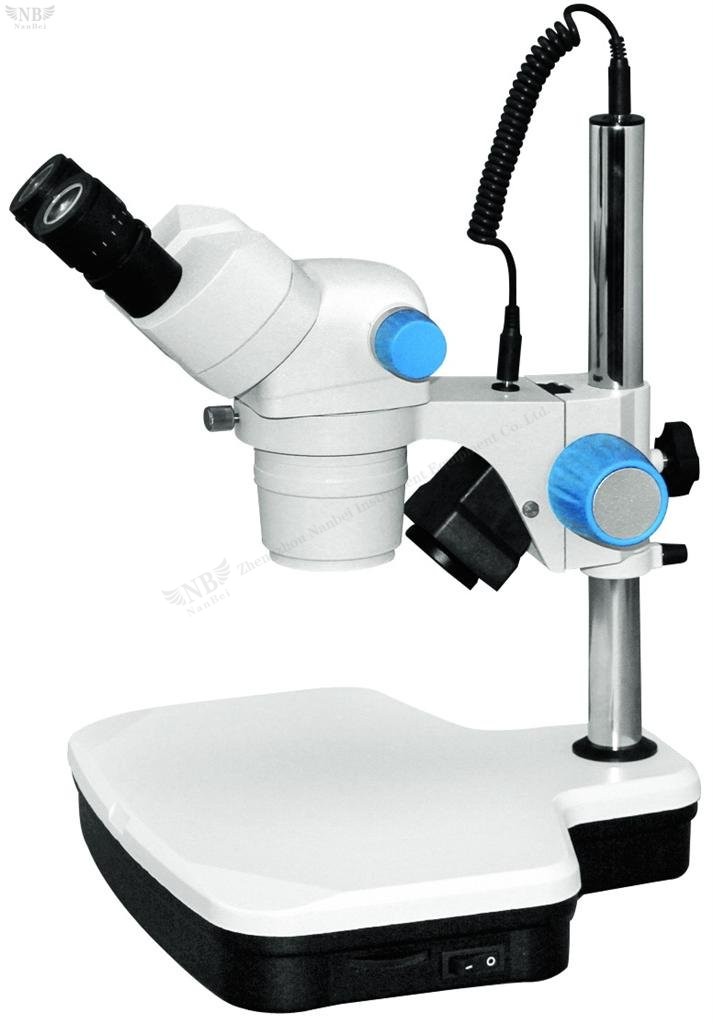

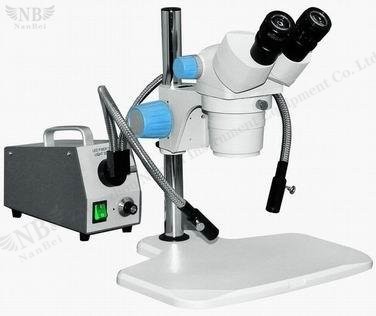

SZ760B2L with rectangular SZ760B2L with reflector base SZ760Binocular with SZ760with Cold Fiber Light Source

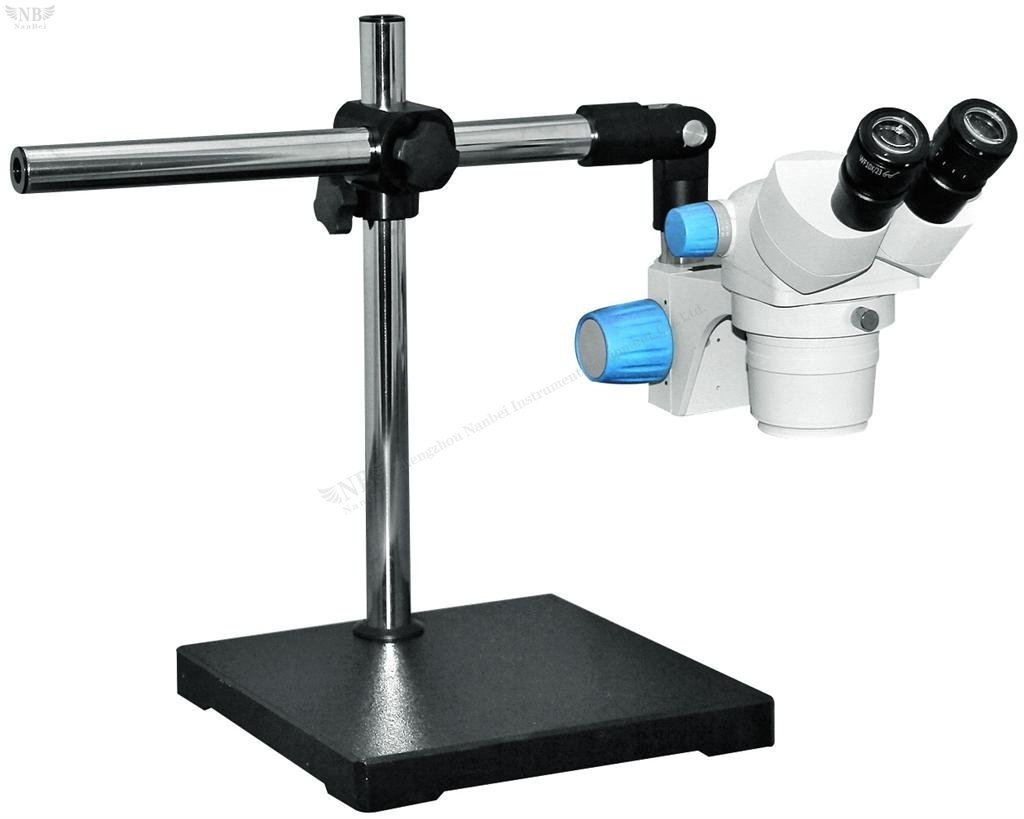

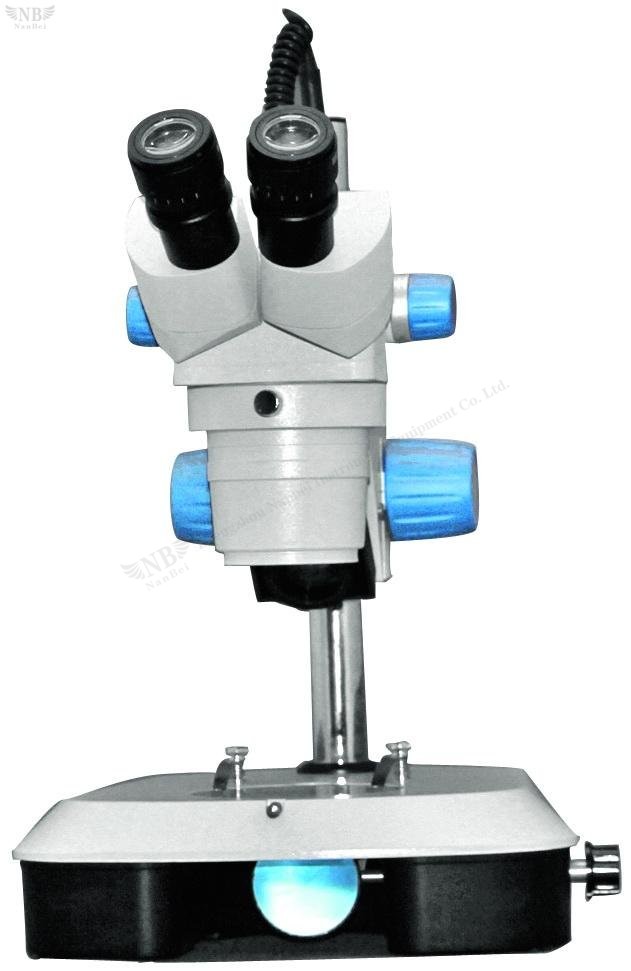

big base (Pillar stand) (Pillar stand) Universal Stand (Pillar stand)
SZ760 Series Objective，Eyepiece Parameter List:
Objectives | 0.5X | 0.75X | 1X(built-in) | 2X | |
W.D | 189mm | 122mm | 110mm | 36mm | |
10XEyepiece/ φ23mm | Magnification | 3.3-25 | 5.0-37.5 | 6.6-50 | 13.2-100 |
Field dia. (mm) | 62.86～9.57 | 41.90～6.38 | 31.43～4.78 | 15.71～2.39 | |
20XEyepiece/ φ13mm | Magnification | 7～46 | 10.5～69 | 14～92 | 28～184 |
Field dia. (mm) | 37.14～5.65 | 24.76～3.77 | 18.57～2.83 | 9.29～1.41 | |
25XEyepiece / φ11mm | Magnification | 8.8～57.5 | 13.1～86.3 | 17.5～115 | 35～230 |
Field dia. (mm) | 31.43～4.78 | 20.95～3.19 | 15.71～2.39 | 7.86～1.20 | |
SZ760 Series Zoom Stereo Microscope Outfits:
Items | SZ760BP | SZ760B2L | SZ760TP | SZ760T2L | SZ760DM320 | |
Main Body (1X objective built in) | Binocular | ● | ● |
|
|
|
Trinocular |
|
| ● | ● |
| |
Digital |
|
|
|
| ● | |
Eyepiece 10×/23㎜ | ●● | ●● | ●● | ●● | ●● | |
Focusing unit | ● | ● | ● | ● | ● | |
No light | ● |
| ● |
| ○ | |
Reflecting 3W LED |
| ● |
| ● | ● | |
Transmitting 3W LED |
| ● |
| ● | ● | |
Black & White Plate | ● | ● | ● | ● | ● | |
Glass Plate |
| ● |
| ● | ● | |
Arm stand | ● | ● | ● | ● | ● | |
Pillar stand | ○ | ○ | ○ | ○ | ○ | |
Reflector base | ○ | ○ | ○ | ○ | ○ | |
Rectangular big base （330 X300mm） | ○ | ○ | ○ | ○ | ○ | |
Stage Micrometer | ○ | ○ | ○ | ○ | ● | |

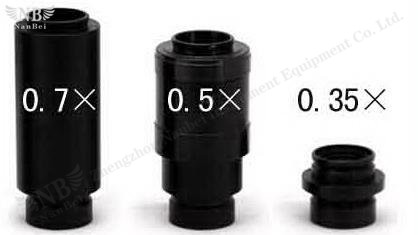

0.35X /0.5X /0.7X C-mount |
|
| ○ | ○ |
| |
Adaptor for digital photo camera |
|
| ○ | ○ |
| |
0.5X/ 0.75X/ 2XObjective | ○ | ○ | ○ | ○ | ○ | |
20X/ 25X Eyepiece | ○ | ○ | ○ | ○ | ○ | |
Two dimensional travelling table | ○ | ○ | ○ | ○ | ○ | |
Single pole Universal Stand | ○ | ○ | ○ | ○ | ○ | |
Double-pole Universal Stand | ○ | ○ | ○ | ○ | ○ | |
Remark："●" Is Standard Attachment. "○" Is Optional Accessories.

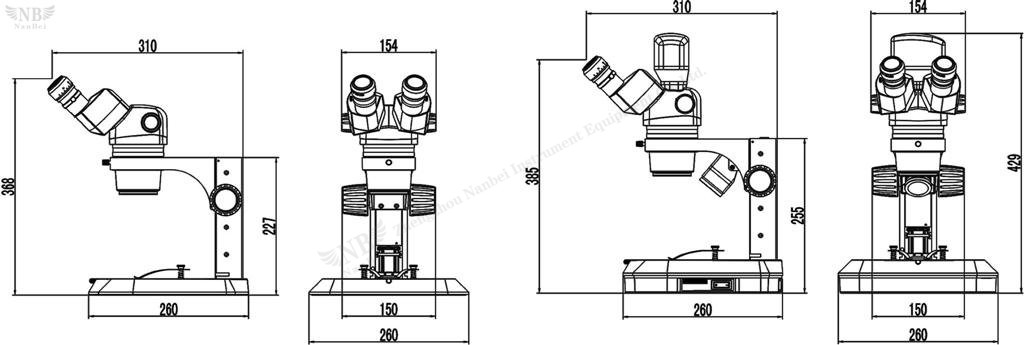

SZ760BP Zoom Stereo Microscope Size SZ760DM320 Zoom Stereo Microscope Size

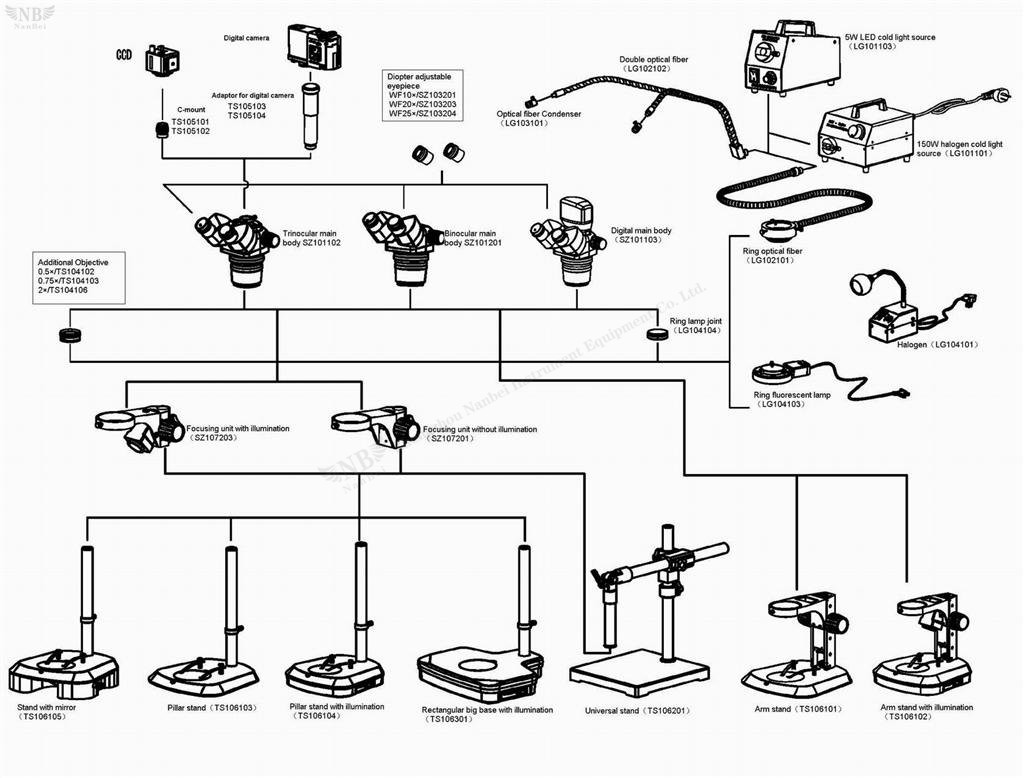

SZ760 Series zoom stereo microscope General layout diagram
