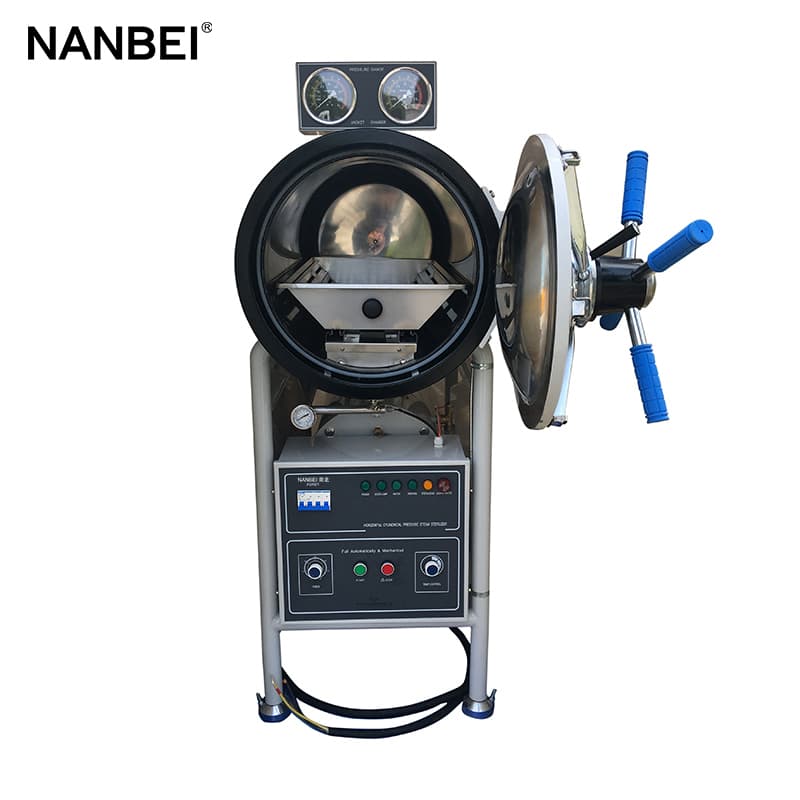

WS-500YDA 500L Horizontal Cylindrical Steam Sterilizer

WS-500YDA 500L Horizontal Cylindrical Steam Sterilizer

Brand:NANBEI

Model:WS-500YDA

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

CONTACT NOW Chat Now

product details

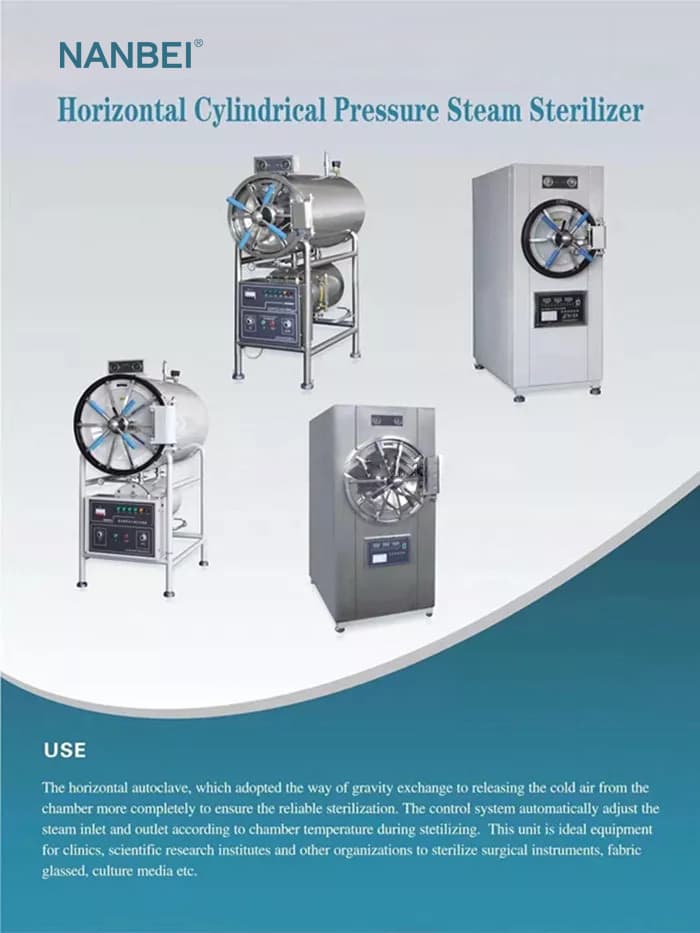

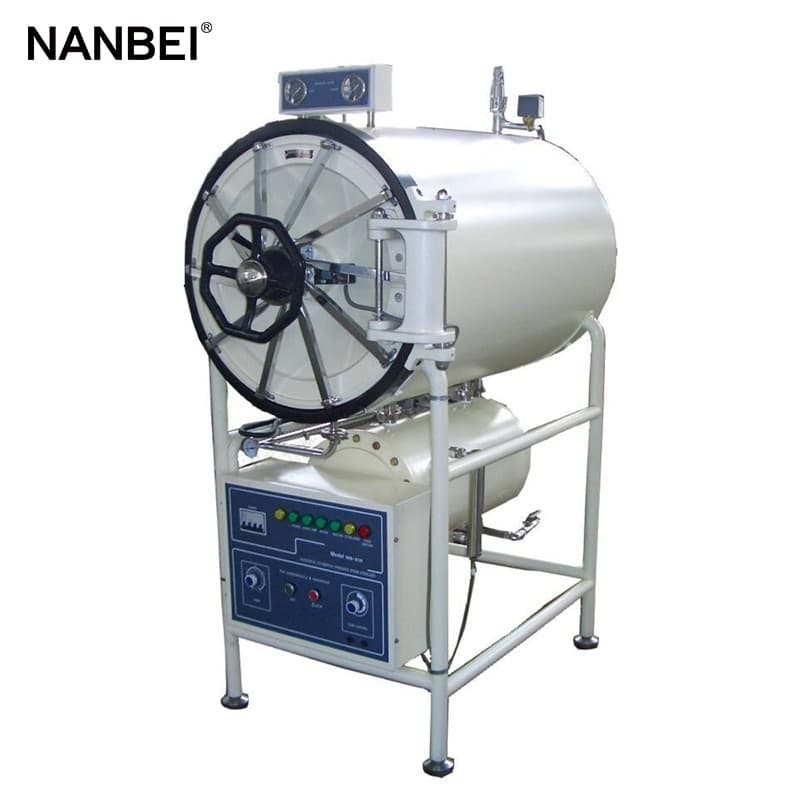

Horizontal cylindrical pressure steam sterilizer

Characteristics:

1. Sterilizing course automatic sterilization controlled,easy to operate.

2. With drying function,suitable dressing drying.

3. With over-temperature,over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

7. The chamber of the sterilizer is made of stainless steel.

Technical data:

Technical data	WS-90YDA	WS-150YDA	WS-200YDA	WS-280YDA	WS-400YDA	WS-500YDA
Sterilizing chamber volume	90L φ440×700mm	150L φ440×1000mm	200L φ515×1000mm	280L φ600×1000mm	400L Φ700×1100mm	500L Φ700×1300mm
working pressure	0.22MPa
working temperature	134℃
Adjustment of temperature	105℃ - 134℃
Time of sterilization	0-60 min
Time of drying	0-60 min
Heat average	≤±1℃
Power	9KW/380V 50Hz	9KW/380V 50Hz	9KW/380V 50Hz	12KW/380V 50Hz	18KW/380V 50Hz	18KW/380V 50Hz
Dimension	1100×600×1300	1400×600×1300	1400×670×1650	1400×770×1780	1430×880×1830	1800×900×1820
Transport dimension	1250×750×1850	1550×750×1850	1560×820×1850	1680×920×2100	1800×1050×2100	1850×1050×2100
G.W/N.W	270/200 KG	320/240 KG	350/260 KG	465/365 KG	530/520 KG	580/470 KG

We can also supply:

Electric or LPG heated	Electric Heated	Table top type

Please click to details	Please click to details	Please click to details
Hand round automatic	Digital display automation	Horizontal cylindrical type

Please click to details	Please click to details	Please click to details
