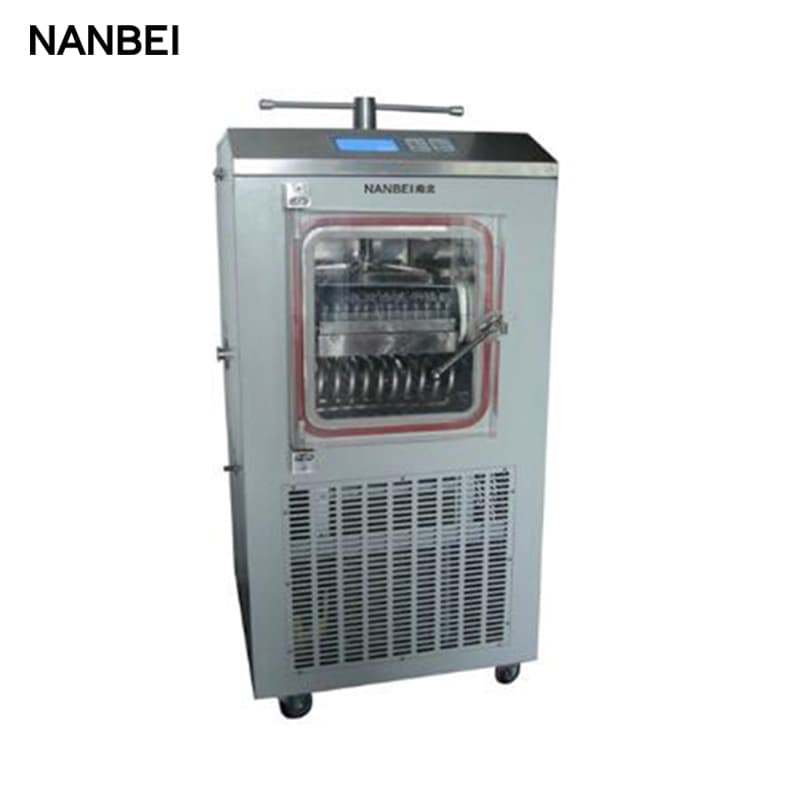

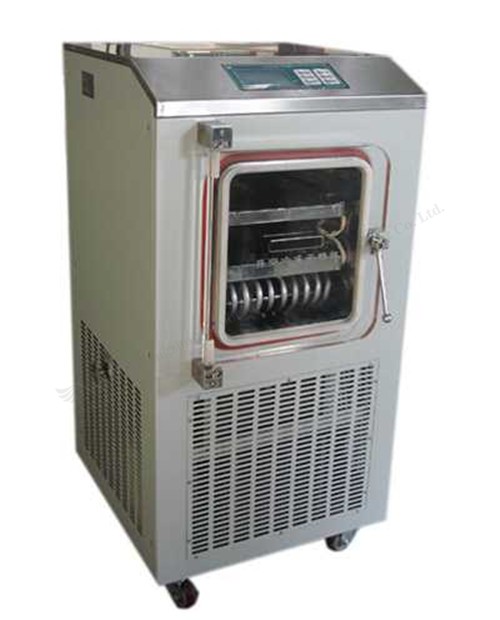

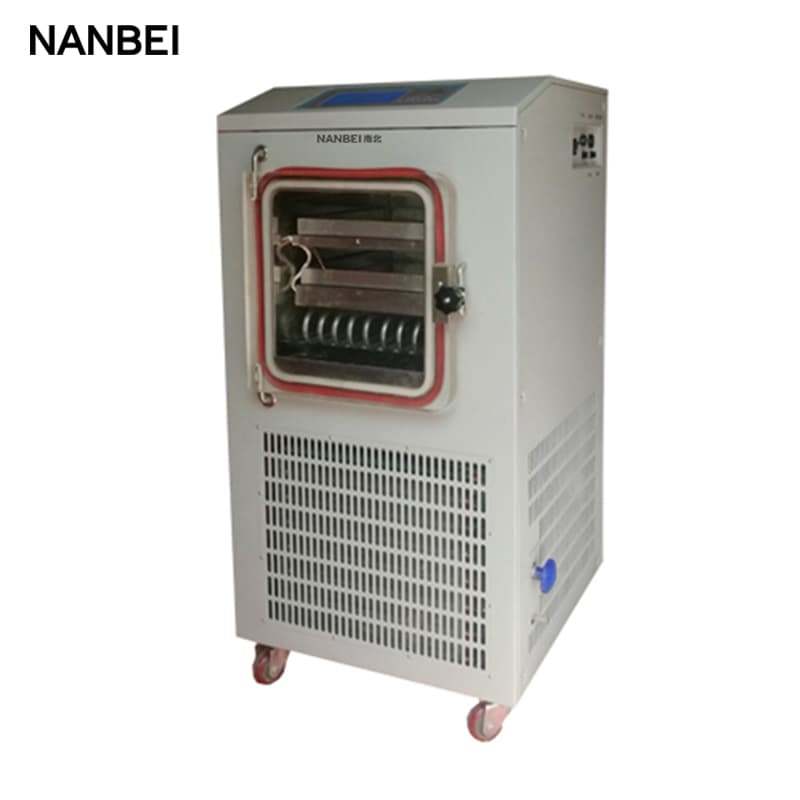

LGJ-10F Vacuum Freeze Dryer
LGJ-10F Freeze Dryer is suitable for freeze drying experiment in laboratory or pilot scale .
This series is our patent products.This series of dryers have electric heating shelf. Freezing and drying process are finished
in the same place. It changes traditional complicated operation and prevents the product from pollution.
Main Features
With electric heating shelf and PID control standard, with programmable function
16 programs can be stored, each program can be set up 32 segments
With organic glass observation window, the whole process is easy to see
LCD displays sample temperature curve, condenser temp.curve, shelf temp. Curve, vacuum degree curve and compound curves.
Internal surface of rectangular chamber and product tray are constructed of stainless steel
RS232 interface is optional, computer connected to display real-time freeze-drying curve
Nitrogen valve is optional
Eutectic point test device is optional
Technical Parameters
Model | LGJ-10F (standard type） |
Drying area | 0.2 ㎡ |
shelf | 2 layers |
Shelf spacing | 70 mm |
Shelf size | 265x400x25 mm |
Condenser temperature | Min.≤-55℃ (-80℃ optional ) |
Shelf temperature | -50~+65℃ |
Bulk capacity | 2 Liter |
Vacuum degree | ≤10 Pa |
Condenser capacity | 3kg/24 hours |
Voltage | 220v ,50 Hz |
Cooling | Air, draughty, ambient temperature≤25℃ |
Vial capacity Φ12mm | 1554 Pcs |
Vial capacity Φ16mm | 868 Pcs |
Vial capacity Φ22mm | 440 Pcs |
Style of press | N/A |
Host Dimension | 605x610x1200 mm |
Host weight | 191kg |
Power | 1700W |
Remark: This product is for civilian use only
